ORD Dual Battery Tray : suits Toyota LandCruiser 300 series
Our Latest model V2 battery tray kit…. Now has Midi Fuse mounting provisions and a lower profile Top Clamp!
The OEX Double Midi Fuse Holders shown are not included but available as an optional extra. These holders allow one cable feed in for 2 circuits as they have a buzz bar link at one end.
Suitable Double Midi Fuse Holders (Sold Separate): OEX Brand (Part Number: ACX6535) OR Narva Brand (Part Number: 54472)

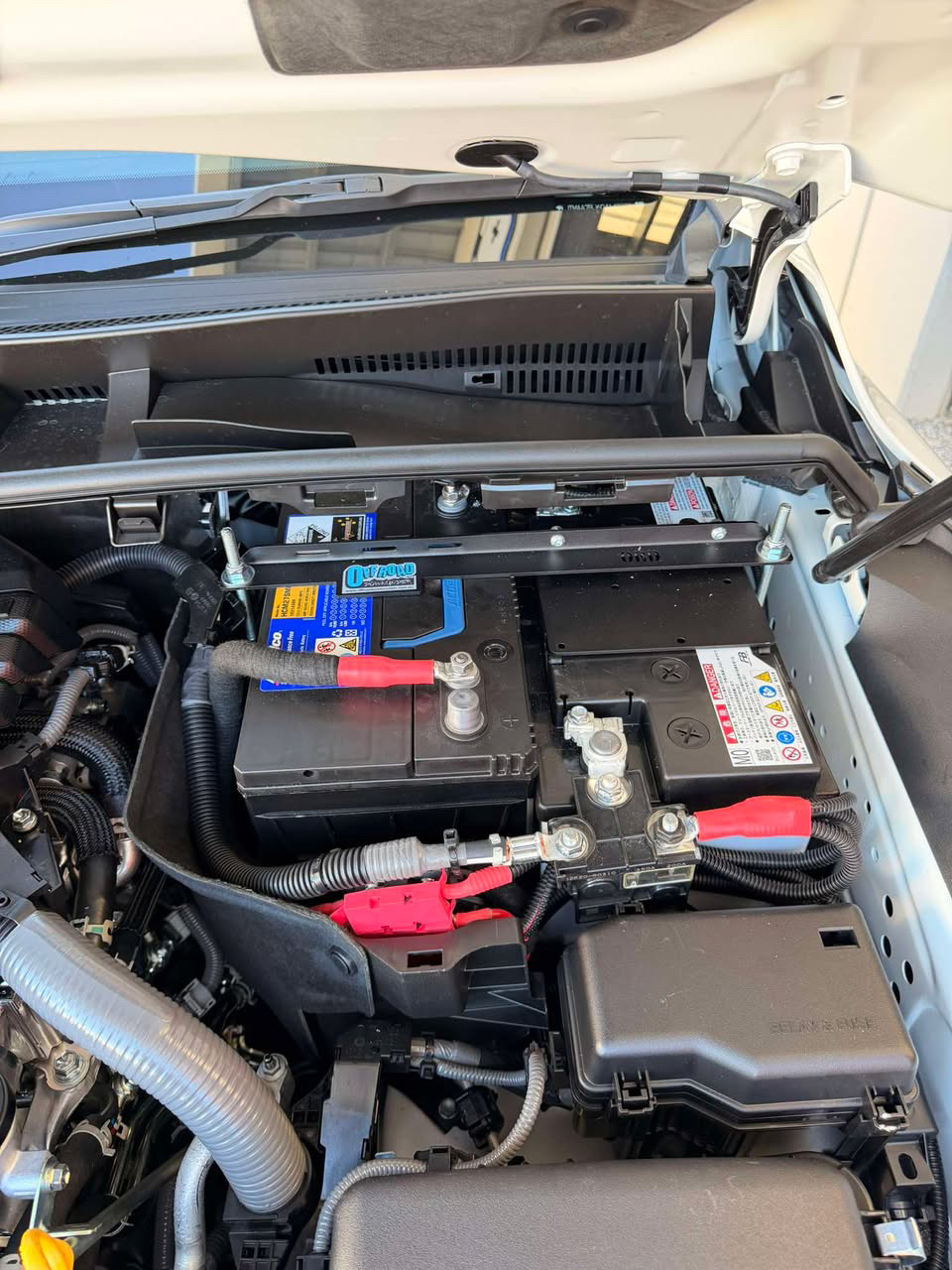

The team at ORD are excited to introduce our latest under bonnet Dual Battery Tray for a LC300, with design strength a priority for Australian conditions whilst creating a seamless factory installation appearance by installing (2) batteries and still retaining the original plastic cover.
Proudly Australian Made, Designed and Manufactured by Off Road Downunder Pty Ltd.
Design Registered Product Number: 202310466 with Certification.
Key features:
- Retains the factory Toyota start battery so its a cost effective installation. 395LN4-MF (312mm L x 175mm W x 189mm H casing)
- No modifications necessary to existing factory Toyota wiring cables.
- Unique design registered ‘adjustable’ battery hold-down clamp system, to accommodate a taller casing second battery compared to the factory start battery.
- Strong Mild Steel construction, treated in Dulux Zinc Shield epoxy primer and top coated in durable modern black powder-coat.
- No drilling required as the base tray is designed to utilize the Toyota factory mounting points and hardware.
- Comprehensive installation instructions and hardware provided.
- Retains factory plastic battery cover even with the taller Invicta Xero Lithium battery installed.
- Australian Made Accreditation
Recommended Auxiliary Battery: (*Battery not included in kit)
- Century ‘Dual Force’ AGM Maintenance free (27LX MF) 90Ah
Century’s new Dual Force range of batteries is designed for under bonnet high temperatures!
Dimensions: 302mm L x 174mm W x 200mm H x 220mm to the Top of Terminals
OPTIONAL “Li” BRACKET FOR Lithium Battery Installation: Select when purchasing in shopping cart
We swap over the standard lower ‘1’ bracket for a “Li” bracket to suit a taller auxiliary lithium battery (The bracket is designed to give you another 17mm taller than the Century Dual Force battery to cater for the taller 100ah lithium batteries around the 220mm overall height).
Typical 100ah Lithium Battery casing size: 306mm L x 168mm W x 215mm H
Suggested suitable options that are approved by the battery manufacturers for under-bonnet use:
- Invicta Xero 100Ah Lithium Battery with Bluetooth IP67 Rating 308mmL x 168mmW x 211/220mmH (SNLX12V100BT)
- Invicta Xero 120Ah Lithium Battery with Bluetooth IP67 Rating 308mmL x 168mmW x 211/220mmH (SNLX12V120BT)
- Itech World 105Ah Lithium Battery with Bluetooth IP67 Rating 255mmL x 170mmW x 215mmH (ITECH120X)
Package deals are available upon request for example: ORD Battery Tray , ORD Charger bracket , Redarc BCDC 1225D charger , Invicta Xero 100ah lithium battery, 2 x double midi fuse holders with 2 x 40amp midi fuses for charger & 1 x 30amp fuse for accessories, 1 x passenger side cupholder power socket fitted out ready to wire up.
