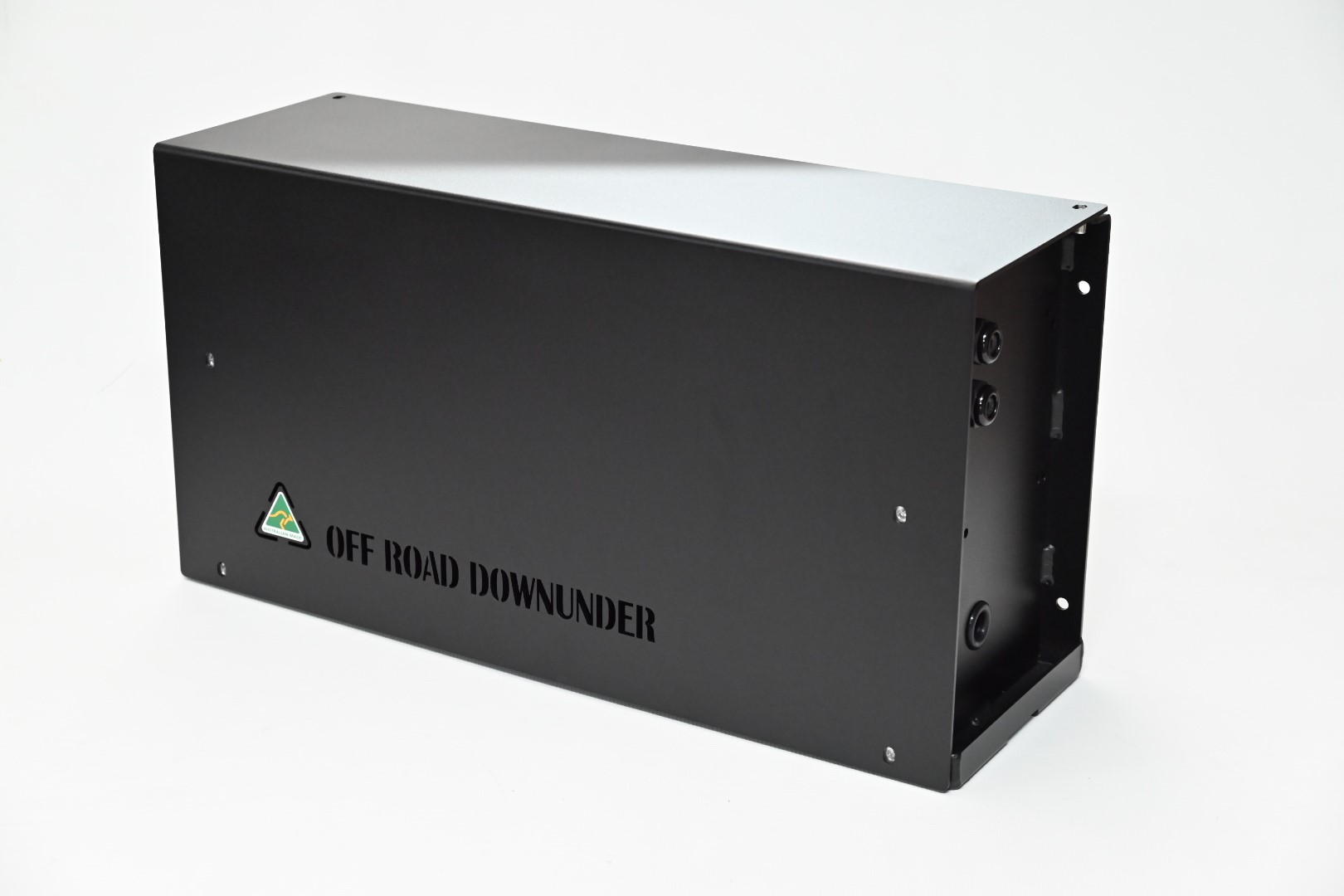

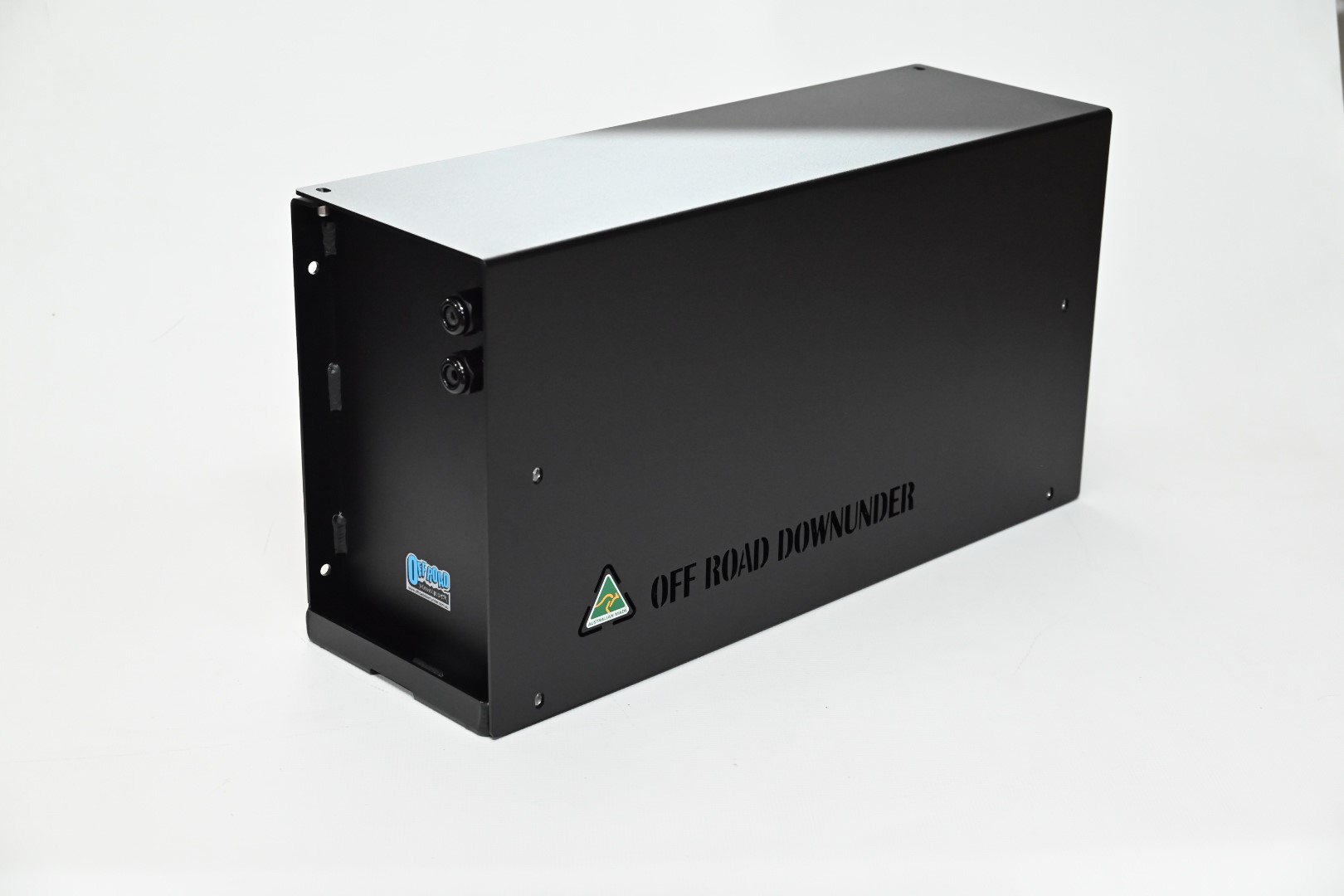

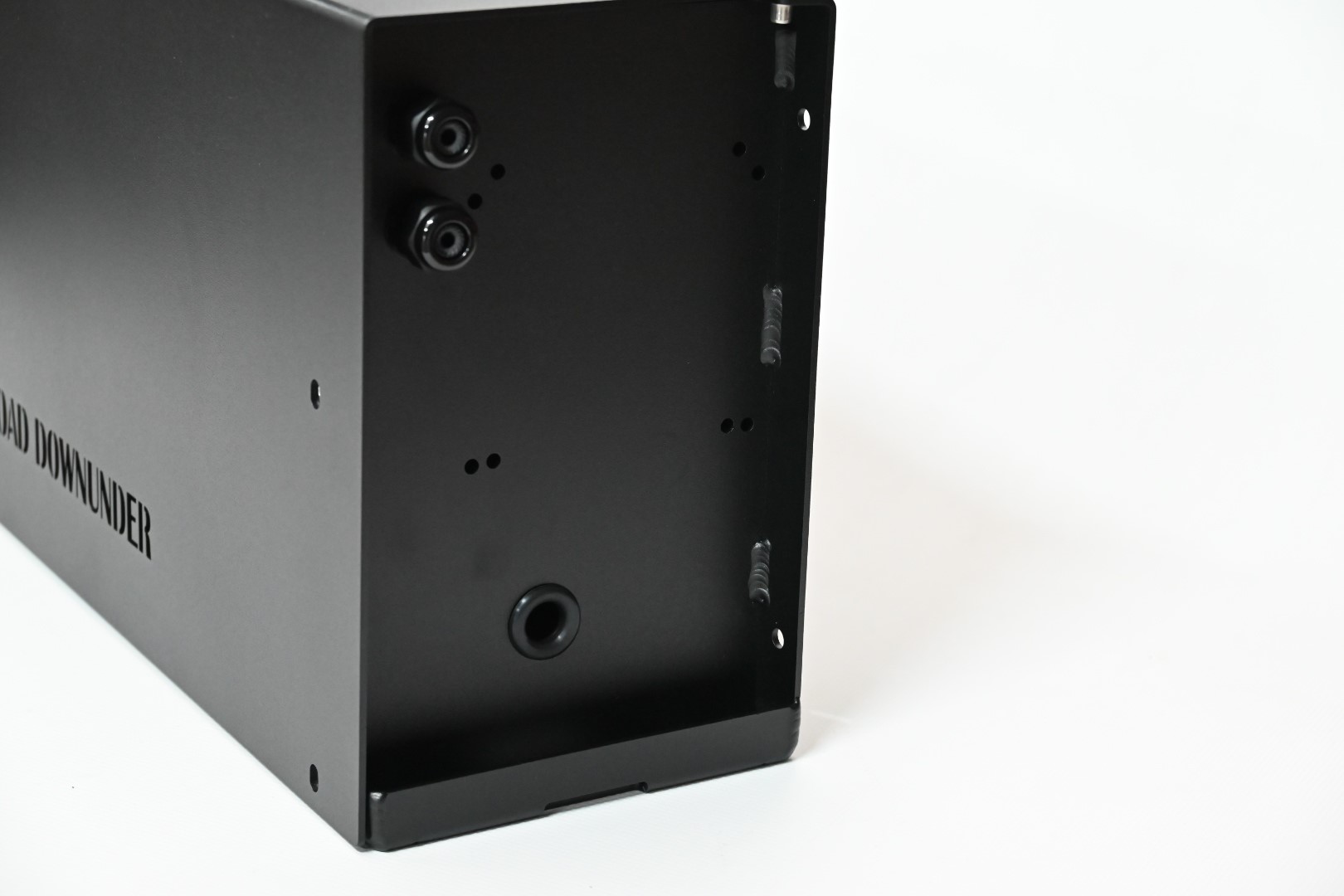

ORD Premium Battery Box (SKU:ORD-BBOX200)
The ORD Premium Battery Box provides a safe and secure protective aluminium box for an auxiliary battery – no plastic boxes here…
Ideal for 4×4’s, SUV’s, sedans, utes, vans, wagons, trucks, motor homes and even the likes of horse floats.
Perfect ‘universal’ solution for fleet vehicles and also its an easy installation and transfer over on vehicles that are changed over on high rotation.
Designed Registered and Manufactured by Off Road Downunder
- Australian Made
- Vertical OR Horizontal installation options.

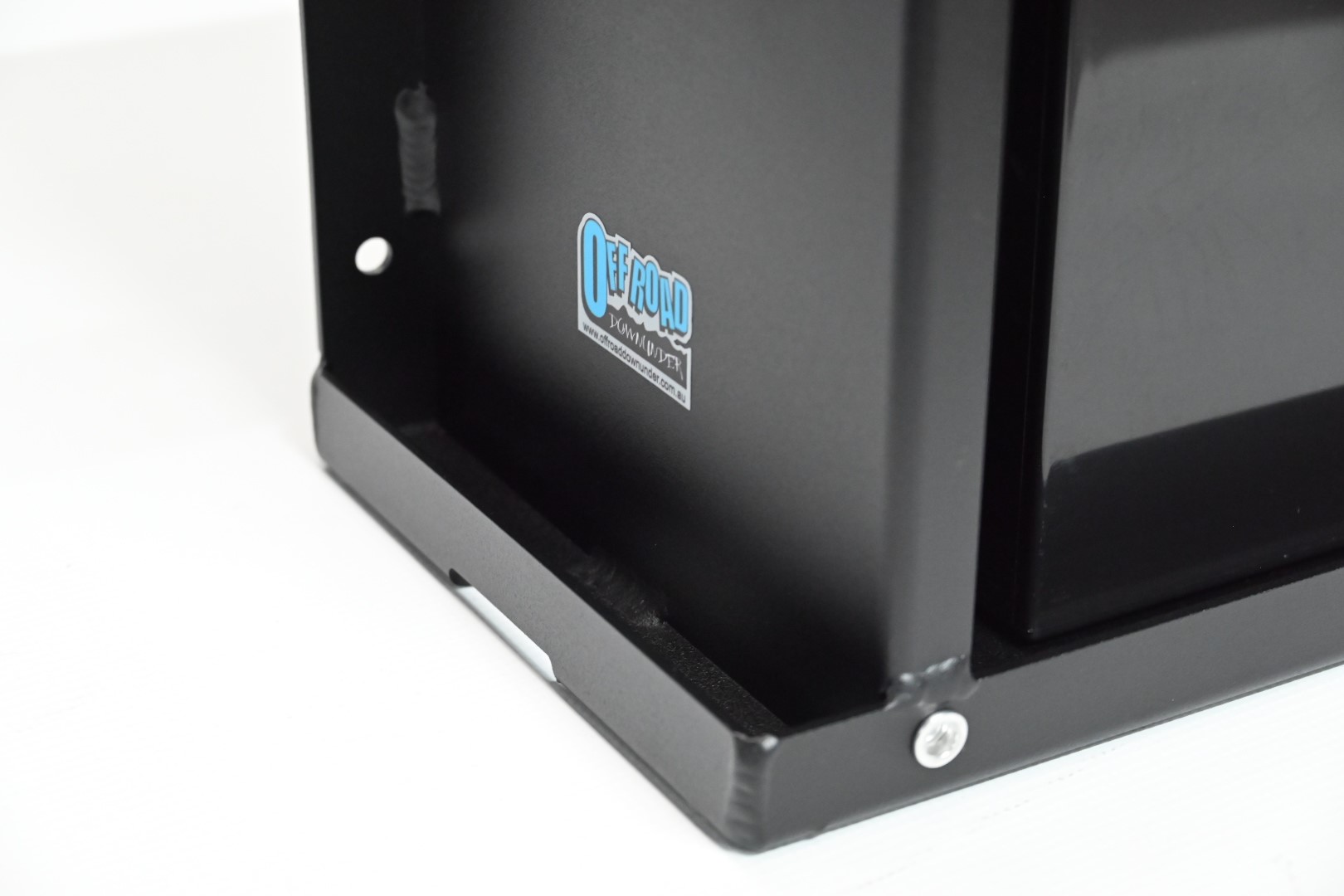

- TIG welded light weight alloy construction design
- Modern ORD black powder-coat finish

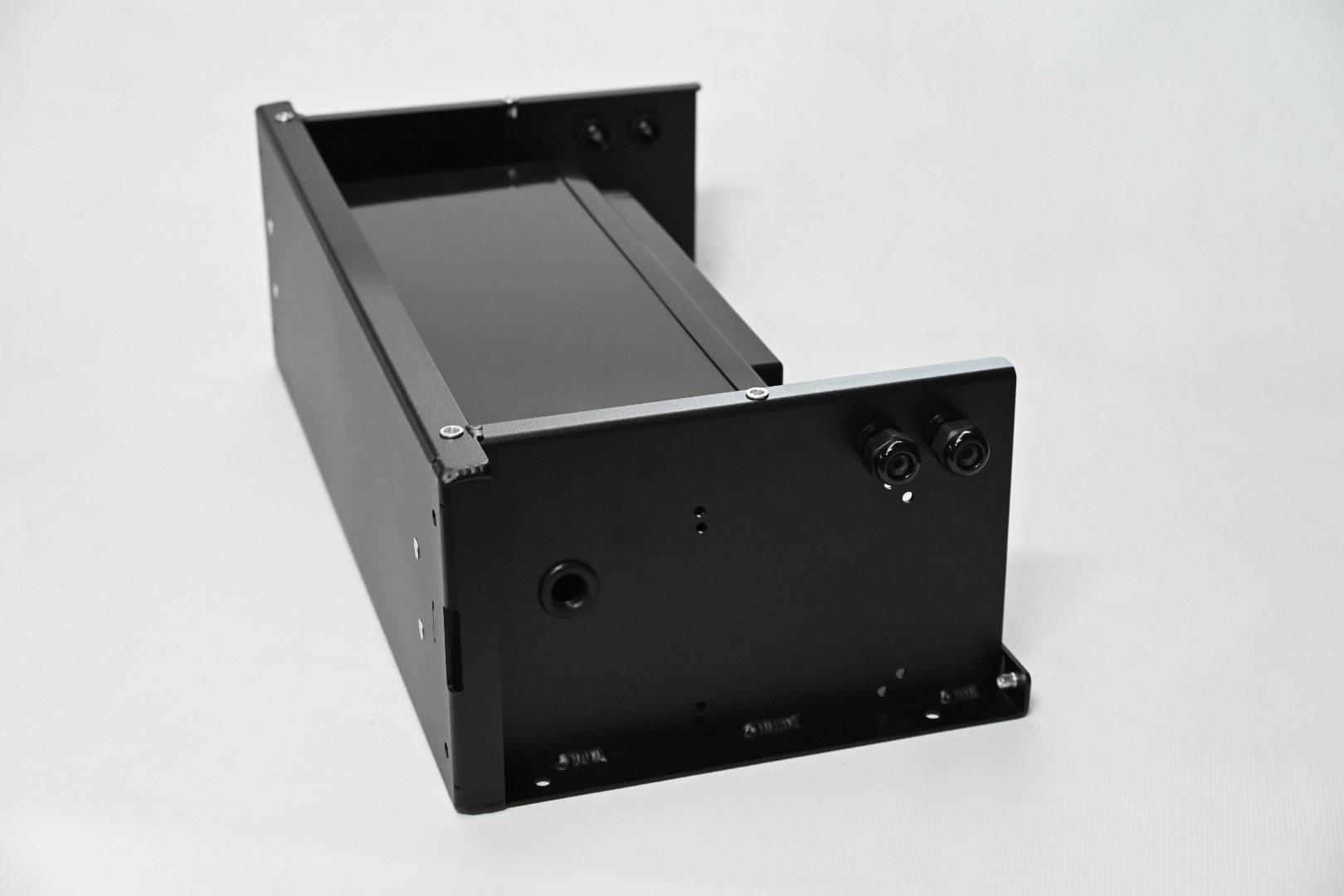

- 4 x cable glands supplied for entry / exit points

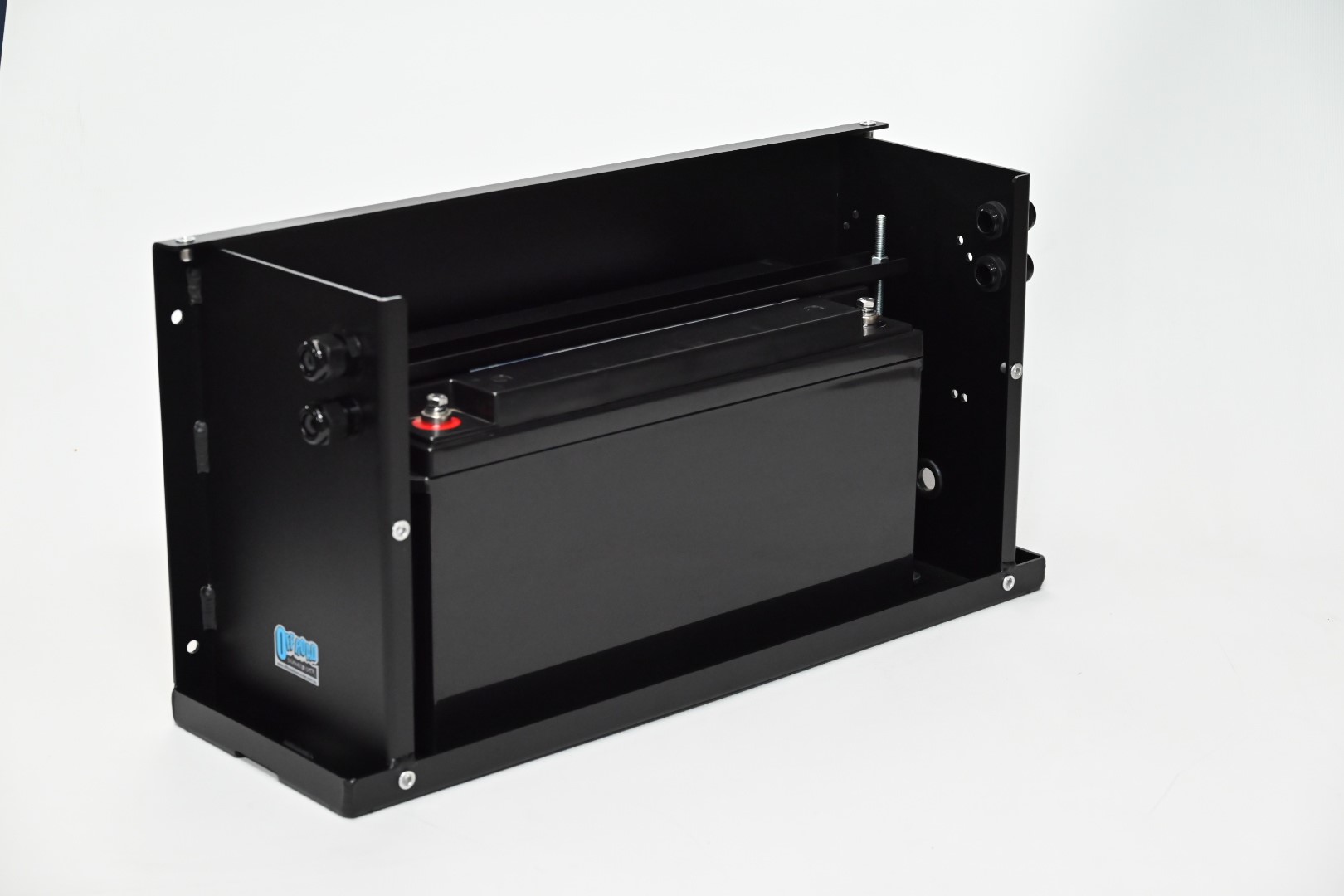

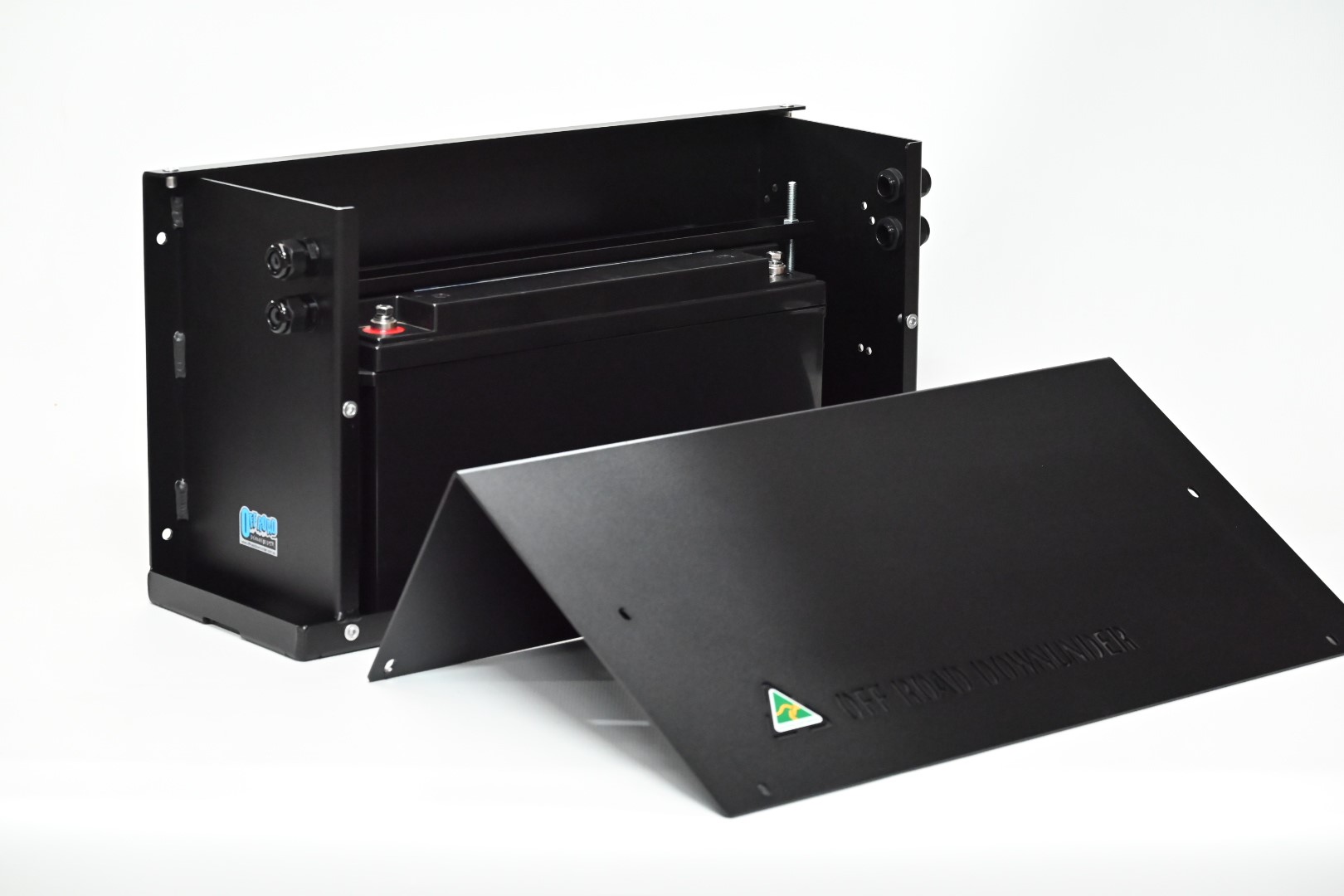

- Removable lid to allow access for battery maintenance
- Air ventilation cut-outs at the base and under the lid
- BCDC Charger mounting provisions with wiring grommet to suit the following: All Redarc BCDC ‘CORE’ , ‘CLASSIC’ and ALPHA Range and the latest Projecta IDC25X DC-DC Charger NOTE: REDARC BCDC CHARGER IS AVAILABLE SEPARATELY AND IS SHOWN FOR DISPLAY PURPOSES ONLY.

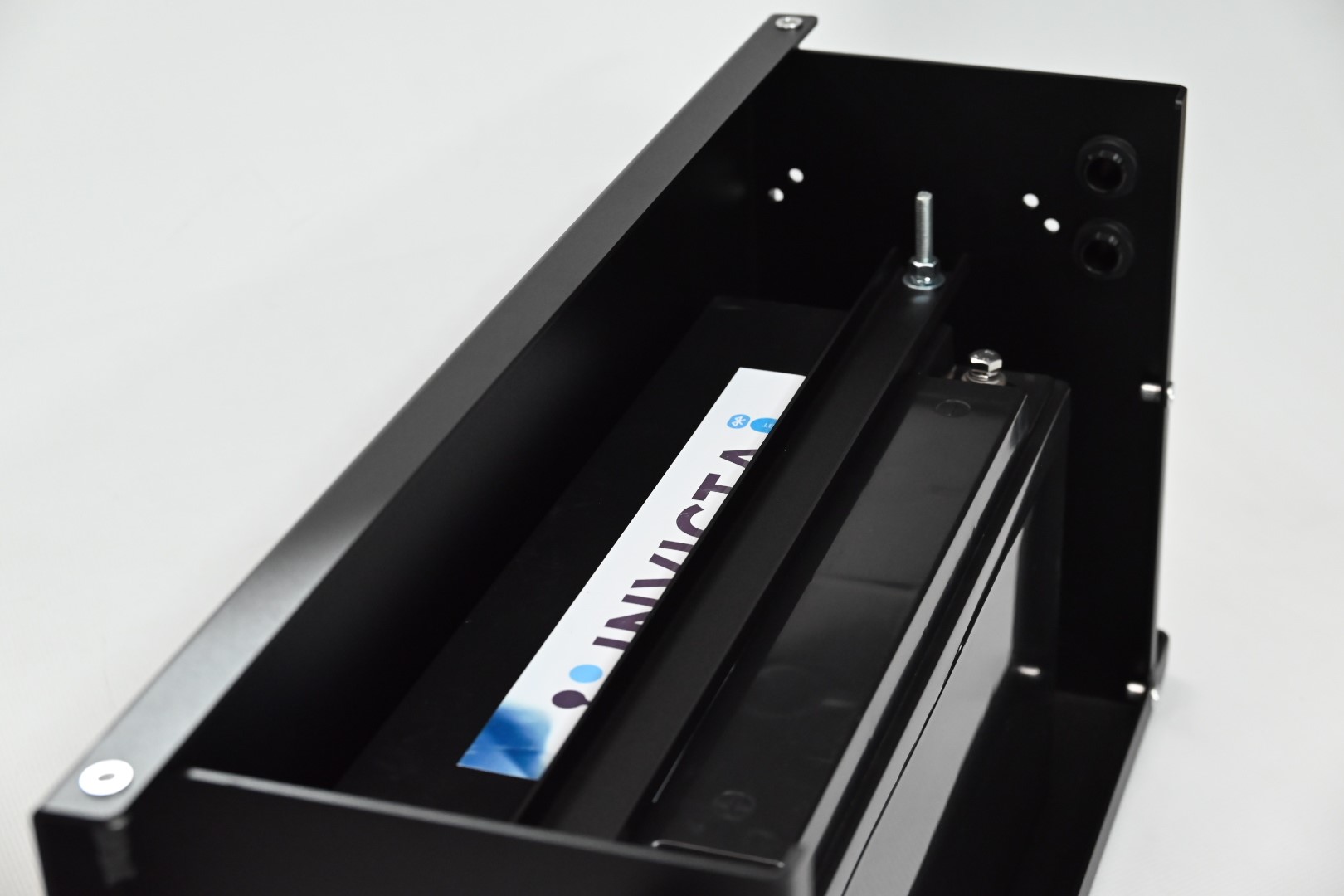

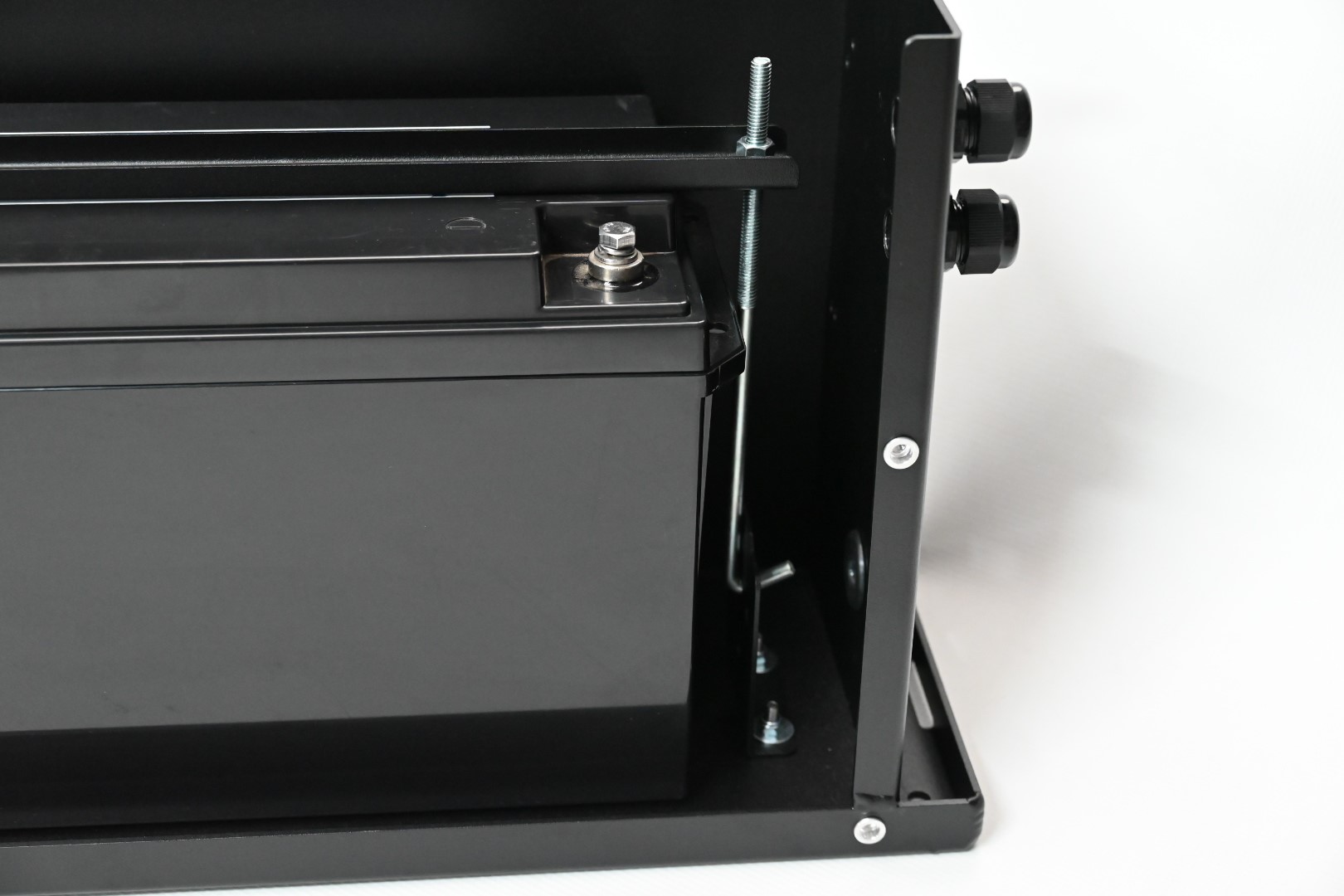

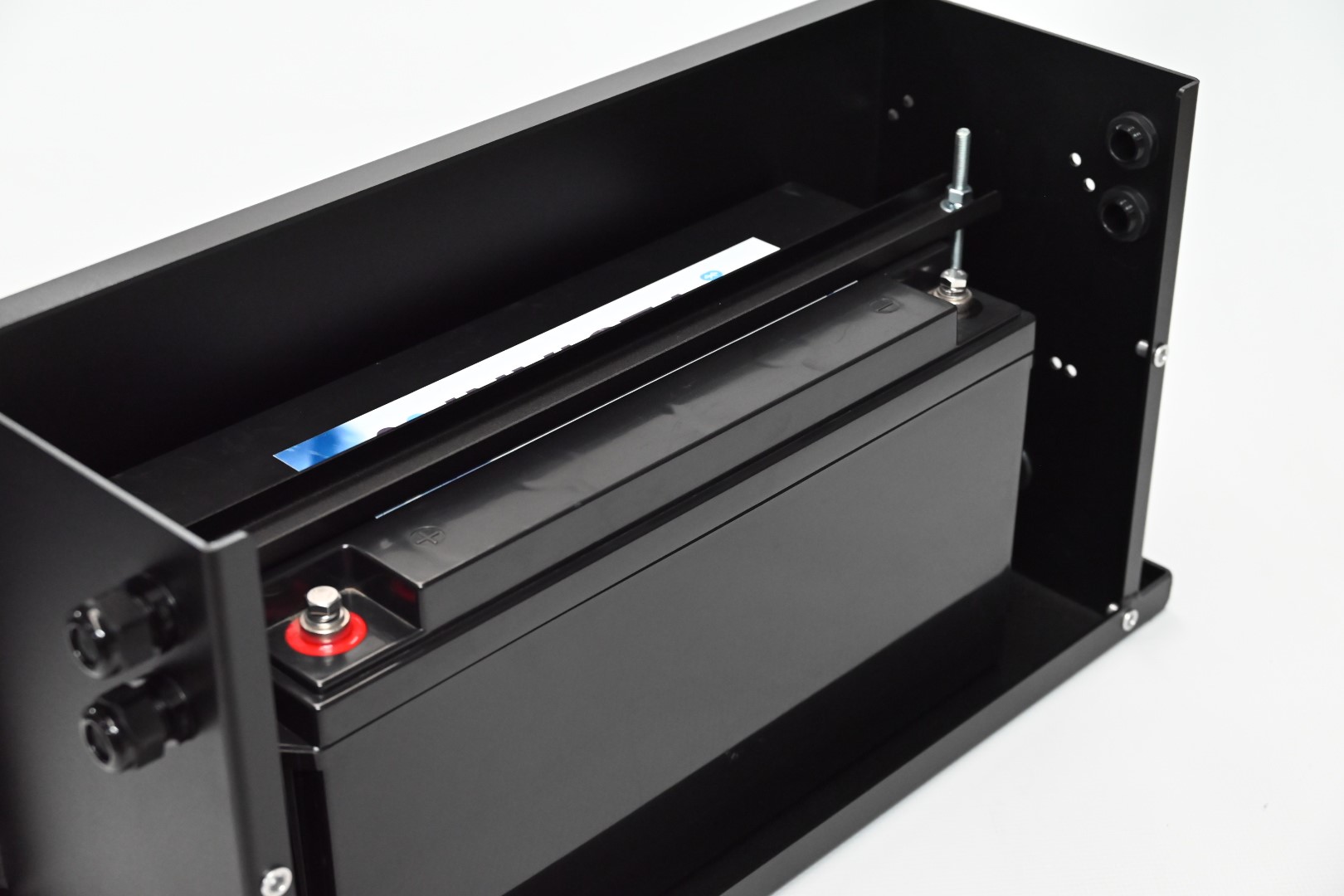

- Heavy Duty Battery hold-down system to cater for different height and length batteries with the adjustable lower brackets.
- (4) mounting provisions for both Vertical and Horizontal applications as shown below. NOTE: If Inverter bracket is fitted the battery box can only be mounted in the upright vertical position.
Suitable Battery Selections: (Other battery brands not listed below that are a similar dimensions are still suitable)
Examples of Lithium Batteries:
- Invicta XERO 12V 200Ah Lithium Battery with Bluetooth SNLX12V200BT (485mmL x 172mmW x 231mmH/247mmH terminal height)
- Invicta ‘BLACK Range’ Lithium LiFePO4 Battery 12v 200Ah with Bluetooth SNLB12V200BT (485mmL x 172mmW x 240mmH)
- Revolution Power Australia Lithium LiFePO4 Battery 12v (200Ah usable) 240ah capacity RPL12-200AH (485mmL x 168mmW x 242mmH)
- Custom Lithium 280Ah COMPACT (338mmL x 187mmW x 245mmH)
- Enerdrive/Dometic B-TEC ULTRA 12V 200Ah Lithium Battery IP67 (485mmL x 172mmW x 245mmH terminal height)
- ItechWorld iTECH240X PRO | Deep Cycle Lithium Battery | with Bluetooth LiFePO4 240Ah (485mmL x 170mmW x 239mm/245mmH inc terminals)
- ItechWorld iTECH300X PRO | Deep Cycle Lithium Battery | with Bluetooth LiFePO4 300Ah (384mmL x 194mmW x 252mmH)
Maximum Battery Casing: 491mm Long (between threaded rods) x 295mm High x 197mm Wide
Product External Dimensions: Length = 650mm x Width = 215mm x Height = 345mm
*Smaller version battery box (ORD-BBOX2) shown for orientation examples below:
Vertical Orientation
Horizontal Orientation
