Description

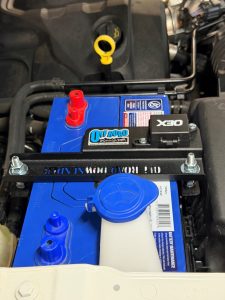

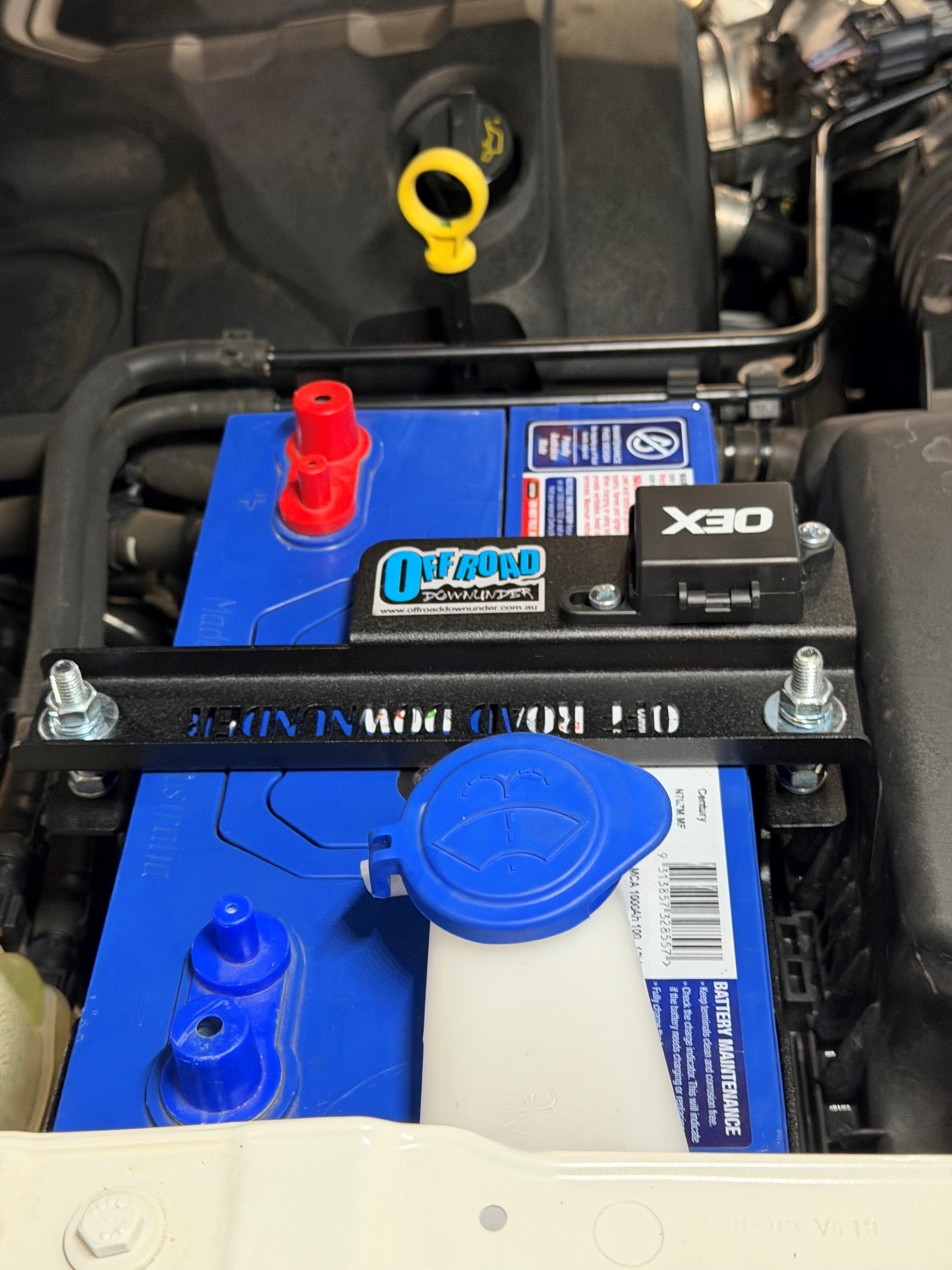

Dual Battery Tray (Under Bonnet)
Suits Ford Everest / Ranger Next Gen 2022 onwards + Volkswagen 2023-on NF Amarok + Ranger SUPER DUTY
After nearly 2 years in development/testing we have produced a quality Australian Made dual battery tray that mounts under bonnet.
After initial prototypes were manufactured, we found the main lower support bracket made out of 4mm thick was not up to the standard we were hoping for… so given the data collected we engineered it out of 6mm thick steel with 4mm thick bracing on the sides where necessary.
After hot testing with temperature sensors in the real world environments we discovered the temperature above the battery would not be ideal to mount a Redarc BCDC Classic charger as they start to de-rate at 55 degrees and cut-out at 80 degrees. We have opted for an addition bracket to mount behind the grill so the charger can operate effectively with air flow and no de-rating of charger which is very important when you want to keep those beers cold.
Important Battery Information:
- Maximum Battery Weight 24kg
- Available Battery Space: Approximately 320mm (L) × 180mm (W) × 215mm (H) (from base to underside of battery clamp)
- The taller the battery, the greater the washer bottle filler neck is on an angle but doesn’t effect anything. (There is stumpy filler necks available aftermarket if you prefer).
- NOT suitable for heavy AGM battery. We recommend Lithium battery that is under bonnet compatible or Lead Acid type battery.
Battery selection that we have put together to give you a comparison of sizing, when choosing your preferred battery:
- Invicta Xero 12v Lithium 100Ah (SNLX12V100BT) 12.5kg 308mmL x 168mmW x 211mmH with 3 year invicta warranty under bonnet application. Available at Off Road Downunder
- Invicta Xero 12v Lithium 120Ah (SNLX12V120BT) 12.5kg 308mmL x 168mmW x 211mmH with 3 year invicta warranty under bonnet application. Available at Off Road Downunder
- ItechWorld 12v Lithium 105Ah (ITECH120X) 10kg 255mmL x 170mmW x 215mmH *Itechworld recommends external heat shield for under bonnet applications.
- Century Dual Force+ 12v 90Ah (27LXMF) 23.5kg 302mmL x 174mmW x 200mmH
- Century Deep Cycle Flooded 12v 95Ah (N70TX MF) 21.5kg 302mmL x 174mmW x 200mmH
Features:
- Quality Laser Cut Product out of Australian Mild Steel ranging from 2mm, 2.5mm, 4mm, and 6mm thick.
- Australian Made and Designed by Off Road Downunder Pty Ltd.
- Design Registered product with Certification Pending.
- Premium Black powder-coat finish with Zinc Primer underneath for increased durability.
- Comprehensive Step by Step photo installation instructions.
- Vehicle-specific mounting hardware for both configurations such as HEX and Round nutserts with a compact nutsert installation tool.
- Heavy Duty Battery Clamp with provision for a OEX dual midi fuse holder.
What’s Included in Battery Tray Kit
- Battery Tray Base
- Main Lower Support Arm Bracket (6mm thick Steel with 4mm thick Steel side bracing)
- 2 x Laser Cut Nut Sticks to mount internally in vehicle box section.
- Heavy Duty Battery Clamp
- All hardware required along with vehicle-specific mounting hardware for both Pre 2025 and After 2025 configurations.
Please Note: BCDC mounting bracket to suit Redarc Classic and Alpha models available separately – as we strictly recommend only fitment behind grill due to temperature reasons.
Vehicle Suitability list:
- Ford Ranger Next Gen 2022 onwards to current (2.0Lt and 3.0Lt V6 T/Diesel)
- Ford Everest Next Gen 2022 onwards to current (2.0Lt and 3.0Lt V6 T/Diesel)
- Ford Ranger SUPER DUTY 2025 onwards to current
- Volkswagen NF Amarok 2023 onwards to current
- Ford Ranger Raptor – Not Compatible as the engine bay layout doesn’t have the space for a second battery.
