Description
DUAL BATTERY TRAY
Part Number: BTTHF2.8
Vehicle/Models: Toyota N80 Hilux & Fortuner
Year: 09/2015 – onwards
Engines: 2.8lt Turbo Diesel Engine

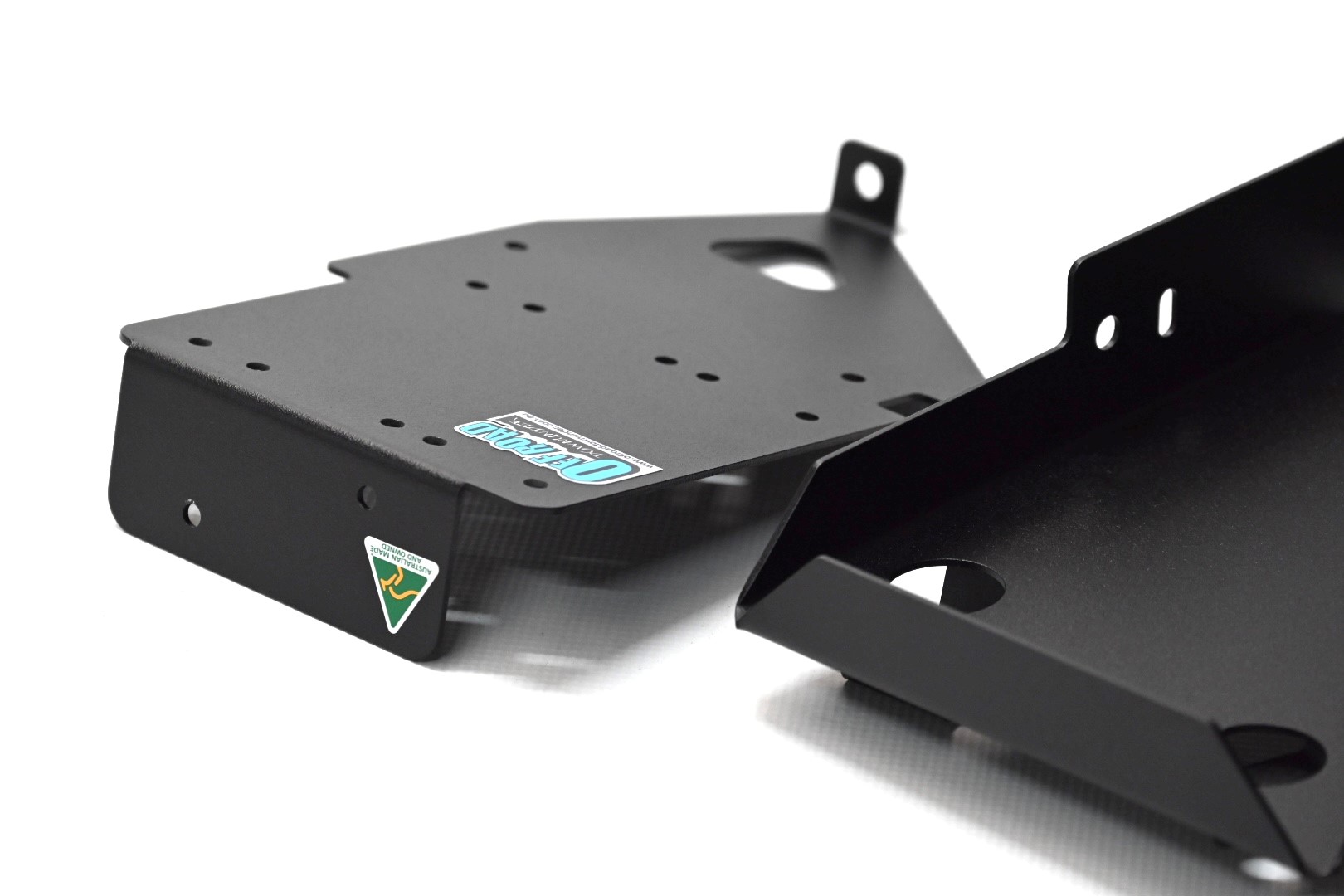

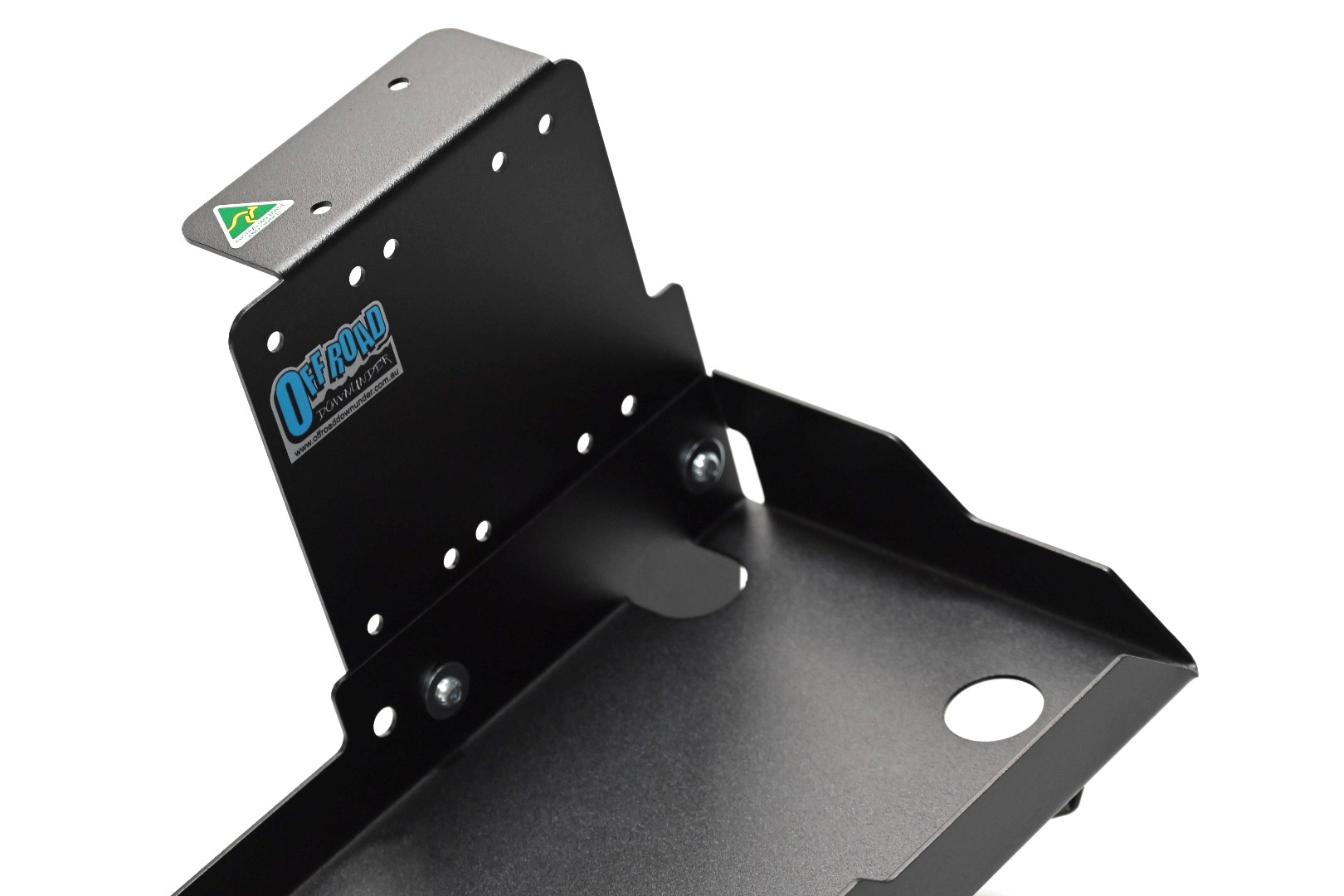

- Precision laser-cut battery tray
- Durable powder-coat finish (Now updated to ORD Black)

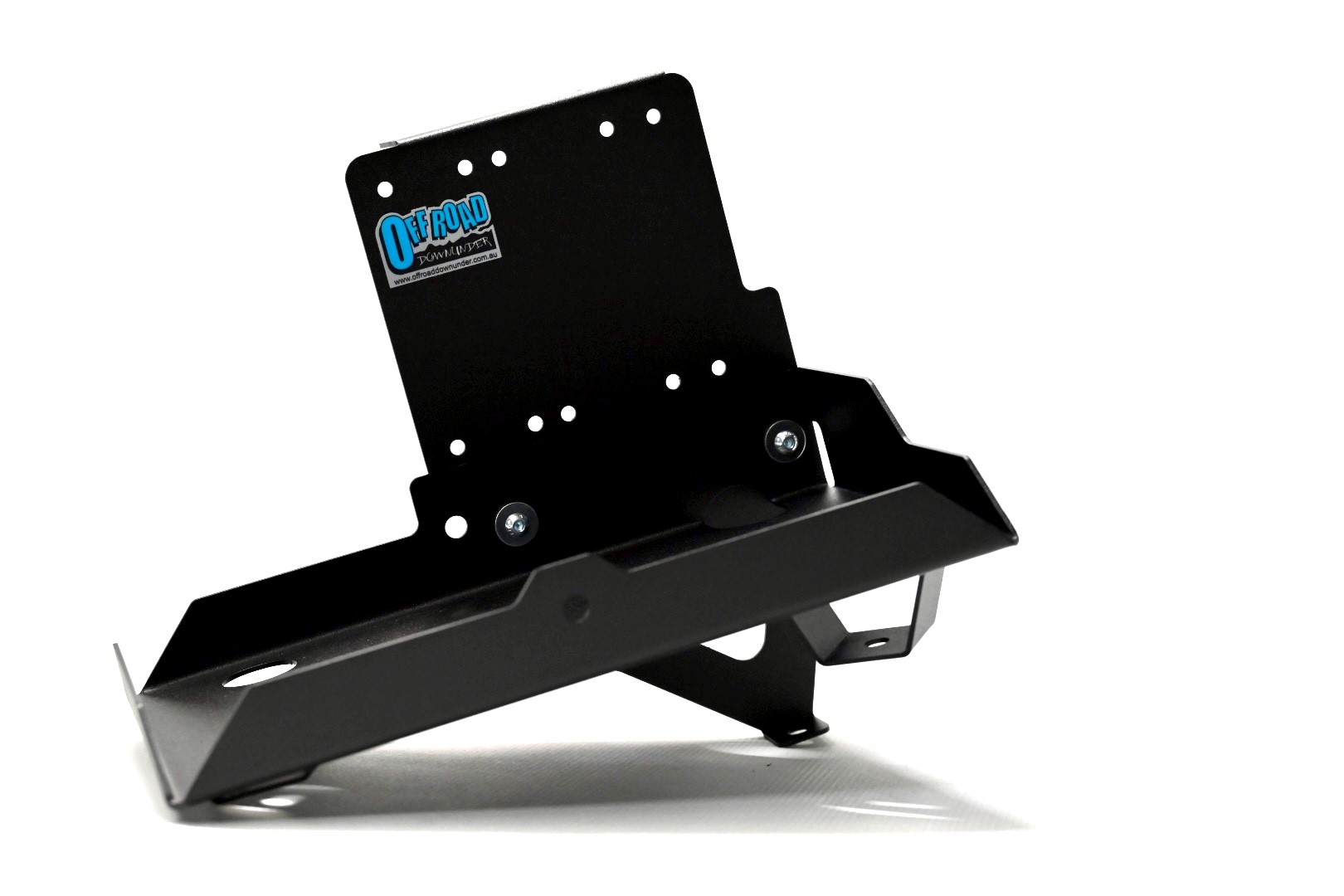

- Integrated side mounting bracket for BCDC Chargers (Redarc + Projecta)

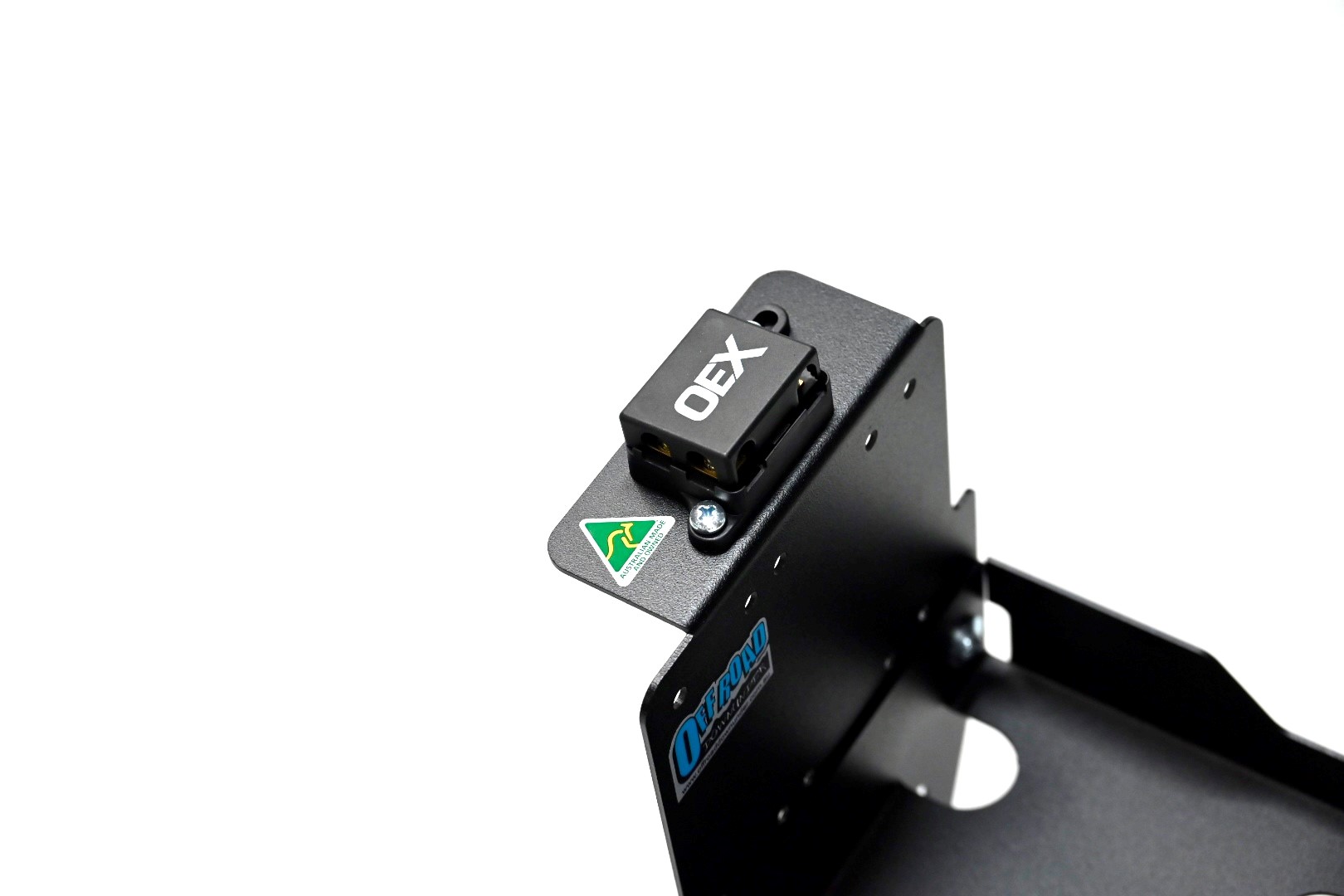

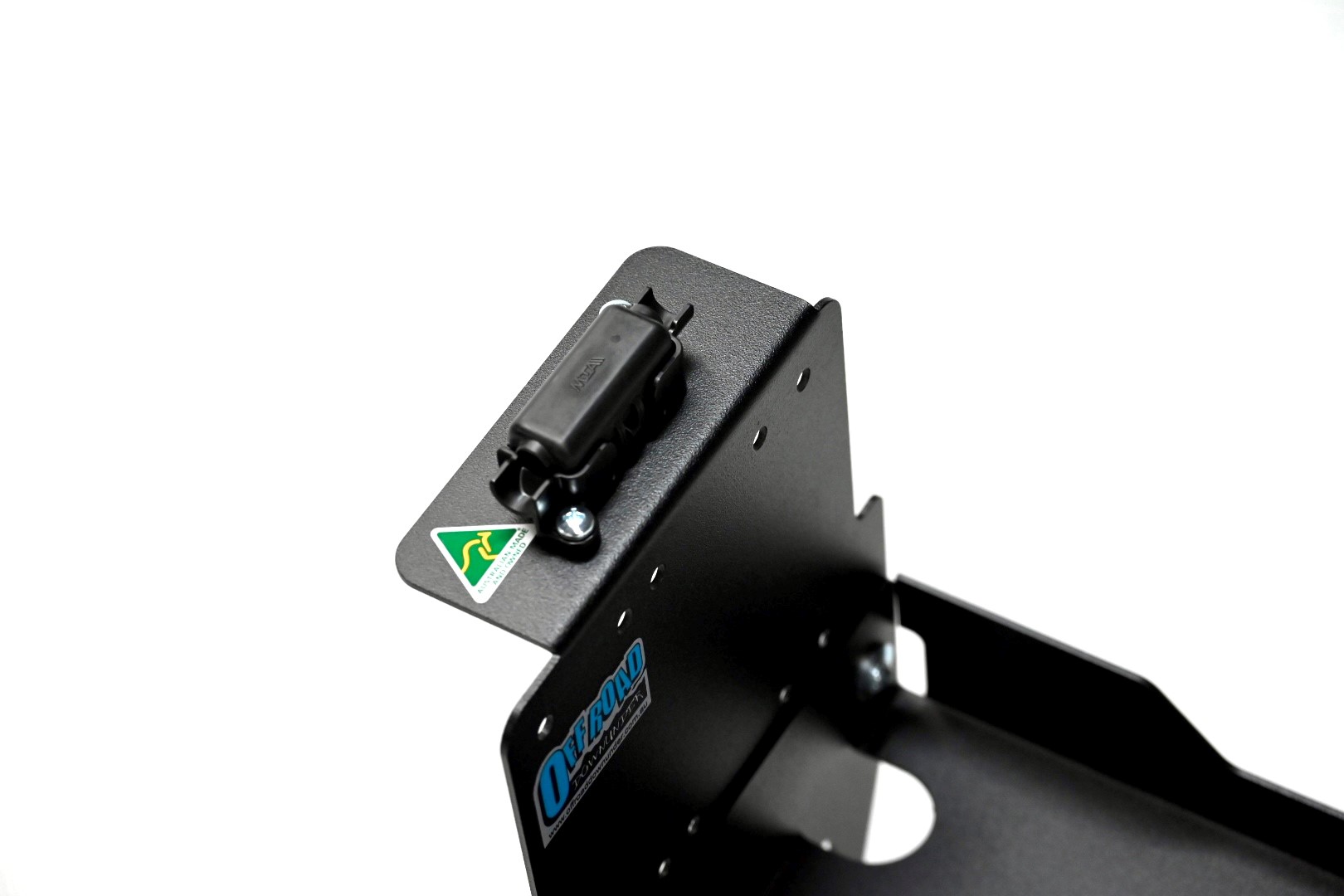

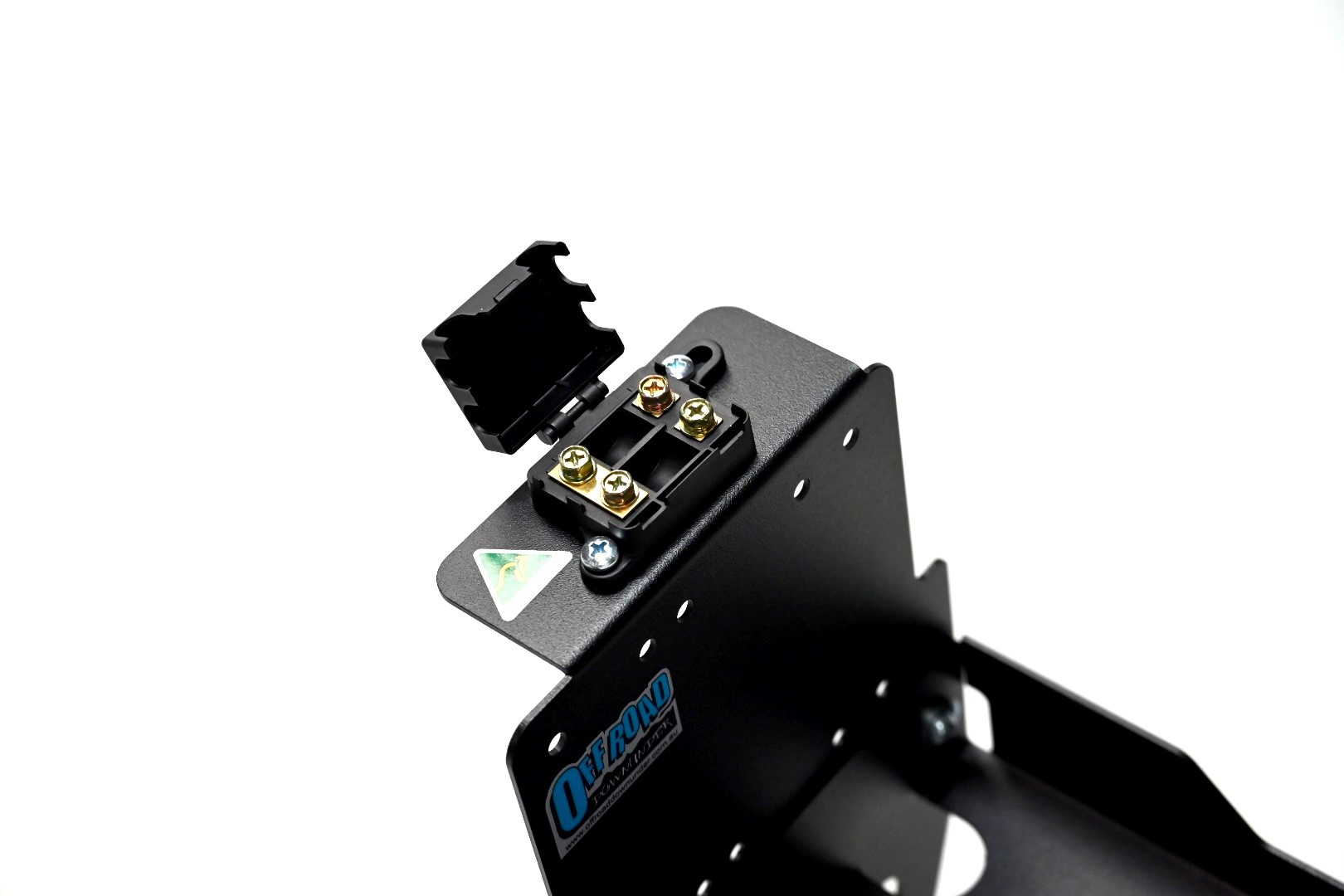

- Provision for single or double MIDI fuse holder. Available under- Electrical accessories.
- Australian made using 2mm Australian steel
- Designed/Owned & Manufactured by Off Road Downunder Pty Ltd.
This battery tray is compatible with the following accessories:

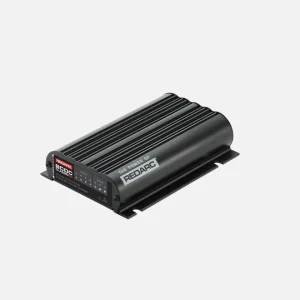

| ACCESSORY | BCDC BATTERY CHARGERS | FUSE HOLDERS |
| BRAND | REDARC + PROJECTA | NARVA + OEX |
| MODEL | 1220IGN,1225D,1240D, 1250D+ IDC25 | 54472 + ACX6514 |
| SPEC | 20AMP 25AMP 40AMP 50AMP | Twin midi fuse + Single midi fuse |

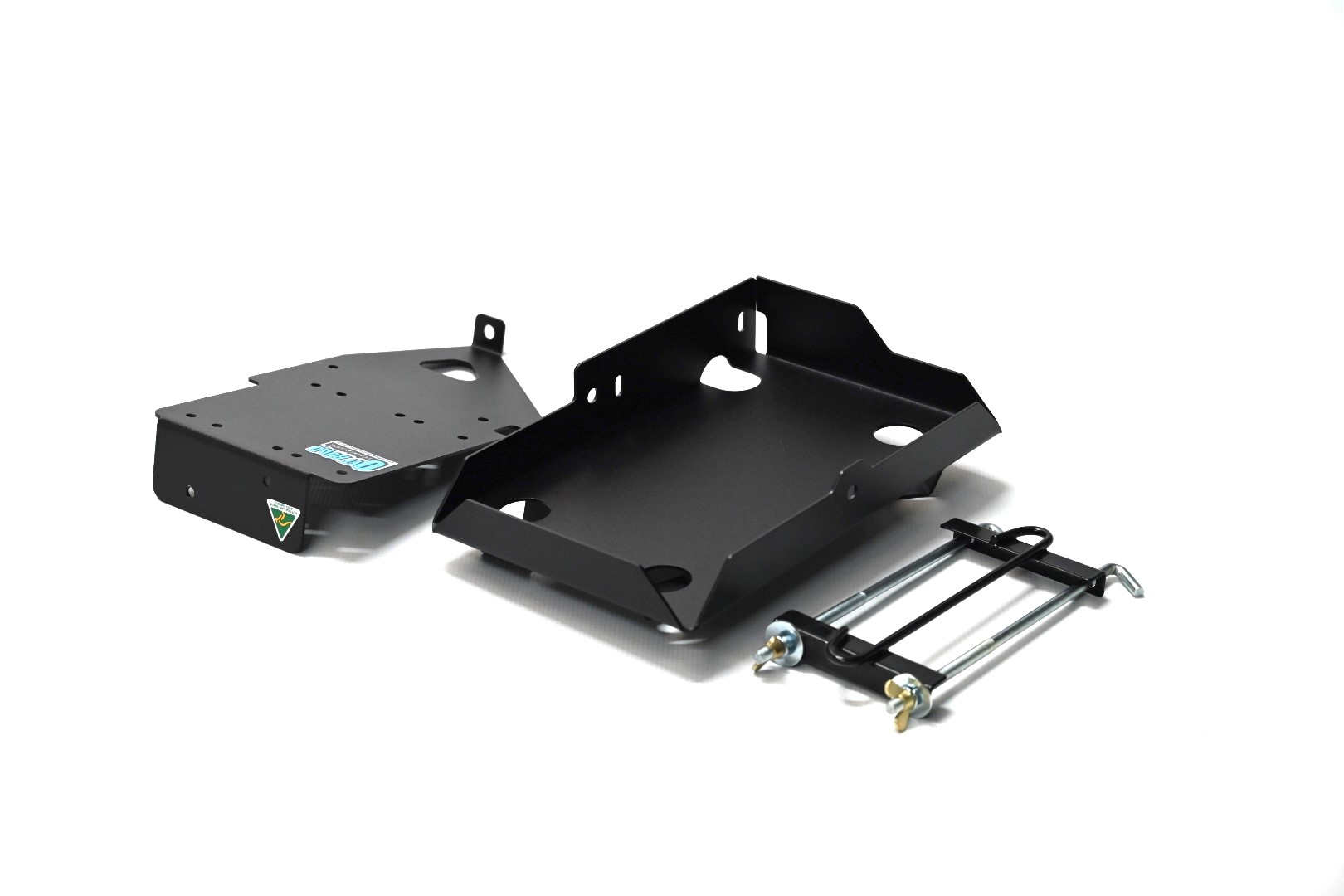

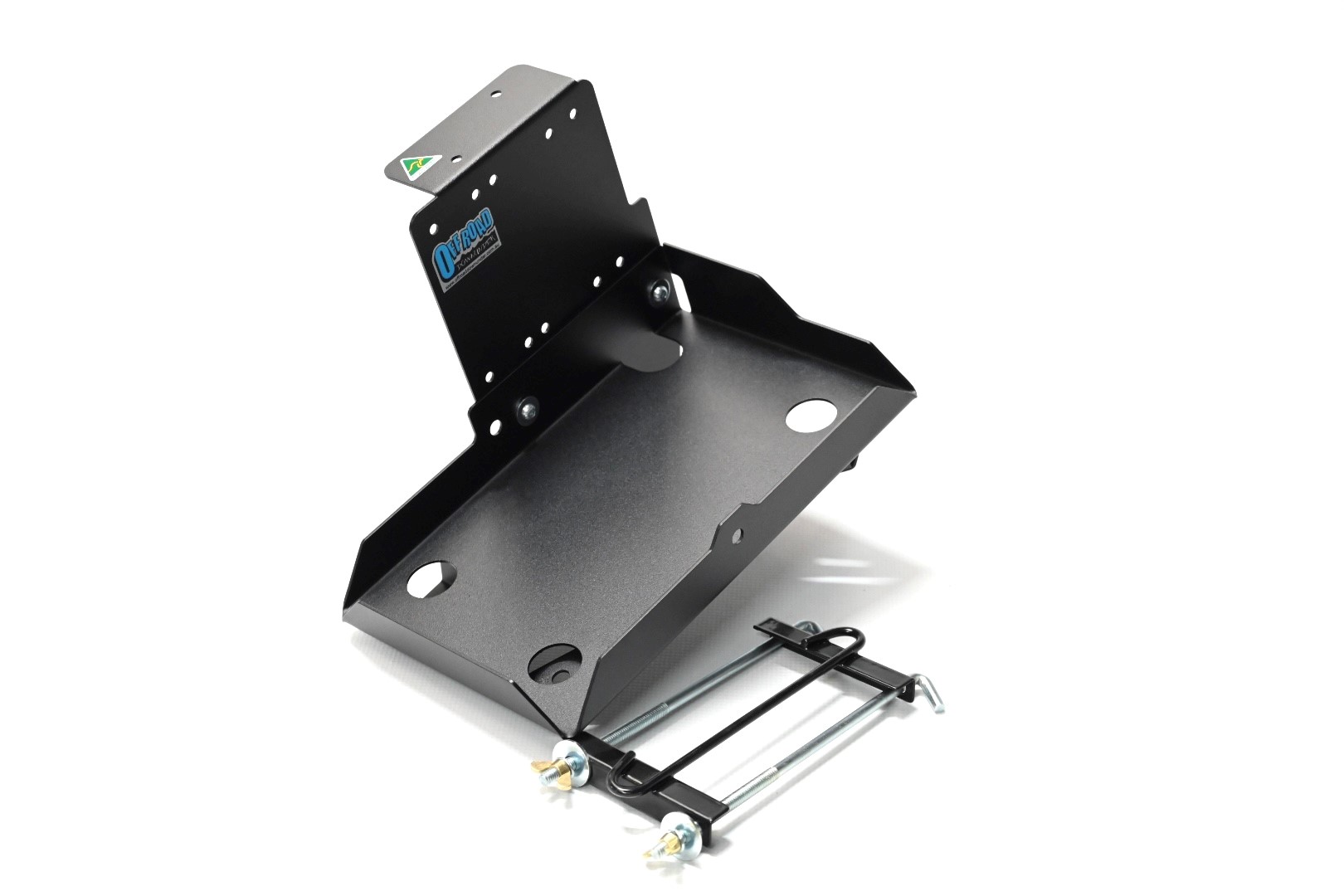

Kit Includes:
- Battery tray base and side mounting bracket
- Heavy duty-hold down clamp
- Bolt kit for battery tray, BCDC Charger mounting and fuse holder provisions.
- Installation instructions
Recommended auxiliary battery / size:
- Century Deep Cycle Flooded Battery 95Ah 12v (N70TXMF) 302mmL x 170mmW x 200mm H x 222mm(TH)
- Century Dual Force 90Ah (27LX MF) 302mmL x 174mmW x 200mm H x 220mm(TH)
- ItechWorld Lithium Battery 105Ah IP67 rating (ITECH120X) 255mmL x 170mmW x 215mm H (Itechworld warranty is on their website which states under bonnet use)
- Up to 25kg max (maximum length battery 308mm long)

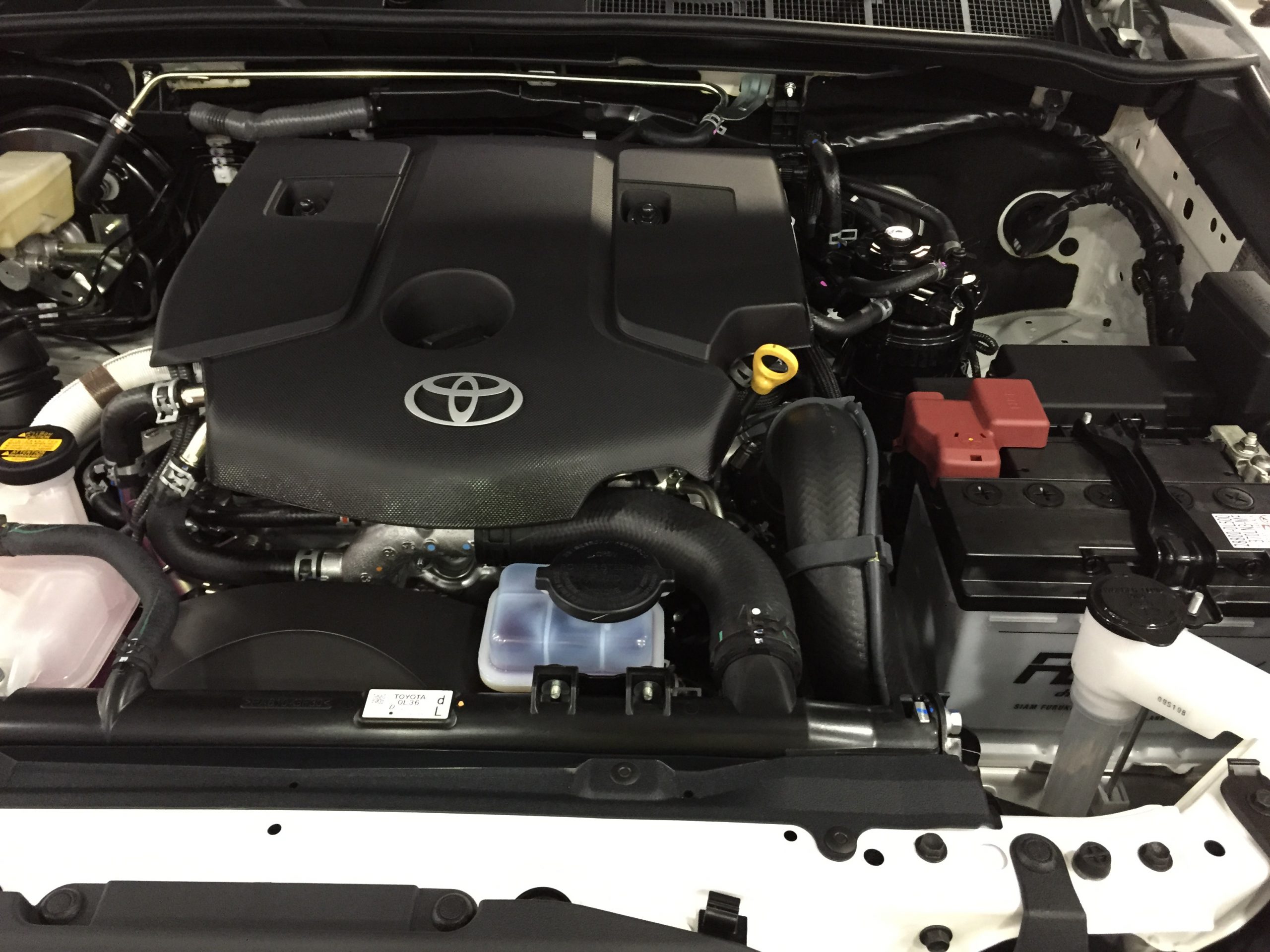

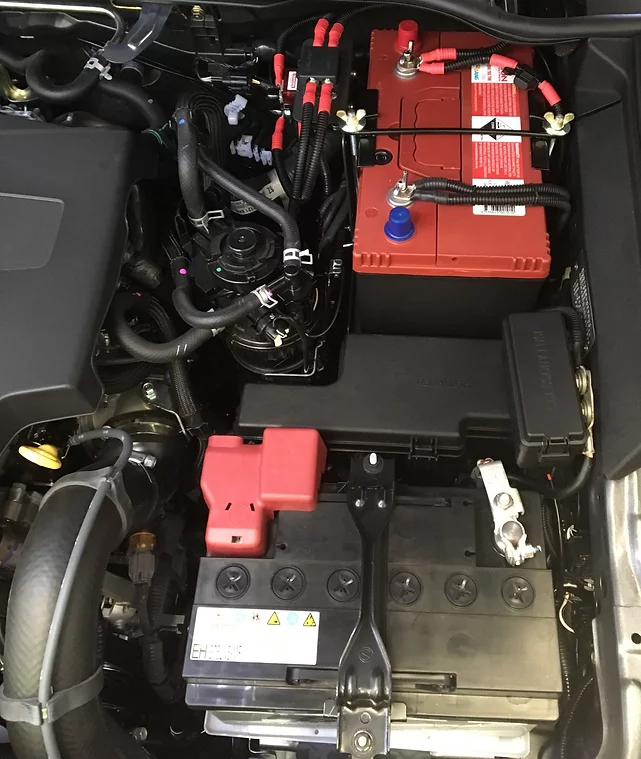

Location:
Rear Passenger side of engine compartment
Utilizes factory mounting holes – No drilling required.
