Description
Off Road Downunder Dual Battery Tray
Suits: RAM 1500 DS Express Crew Cab
Australian Made Accreditation
Design Registered Product with Certification (No: 202111443 )
Manufactured by Off Road Downunder Pty Ltd.

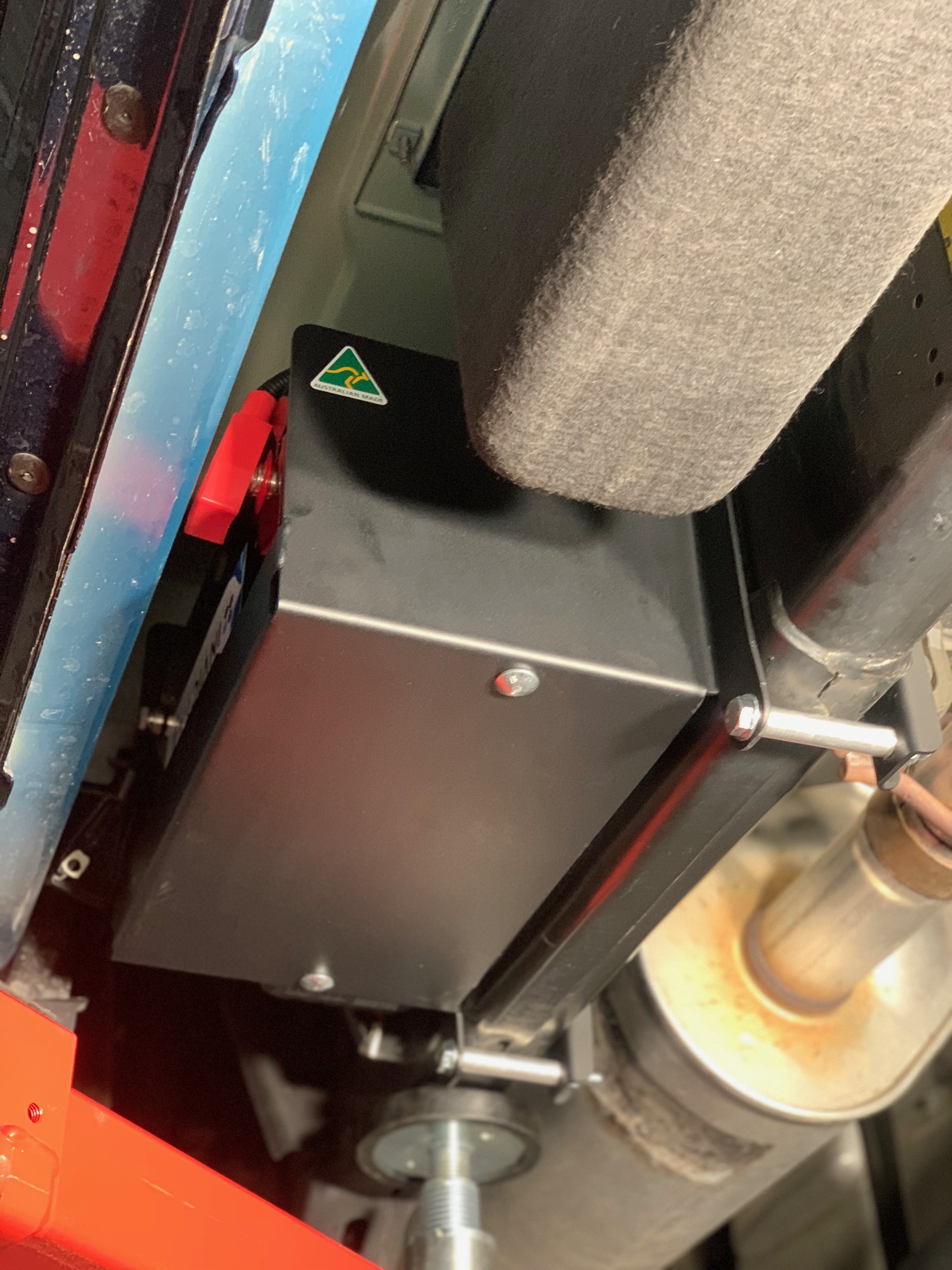

Location: Chassis mounted – Drivers side (Aust RHD) under rear passenger seat area behind factory floor storage compartment.
NOTE: Will NOT suit vehicles fitted with Electric side steps.
Suitable Size Batteries depending on your application:
- Century AGM Battery C12-105XDA 105ah (L x W x H) 307 x 169 x 210
- INVICTA Lithium Battery 12v 100Ah LiFePO4 with Bluetooth ,Dimension (L x W x H) 306x168x216mm (SKU: SNL12V100BT)
- Revolution Power Lithium Battery 12v 100Ah LiFePO4 Dimension (L x W x H) 305x165x215mm (SKU: RPL12-100)
- ITECH120X 12 105ah Lithium deep cycle battery (L x W x H) 255x170x215mm (225mm including terminals)
FEATURES:

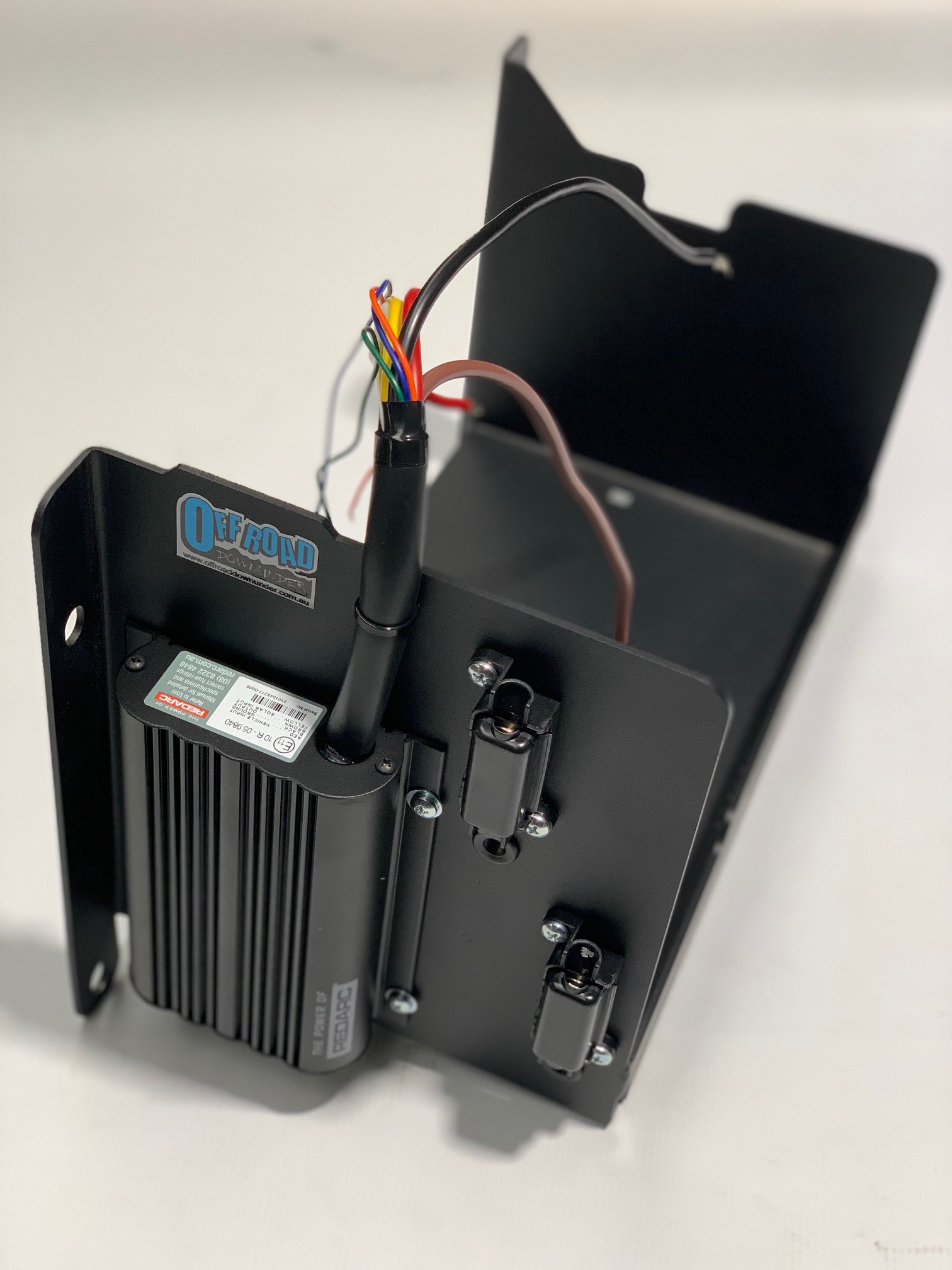

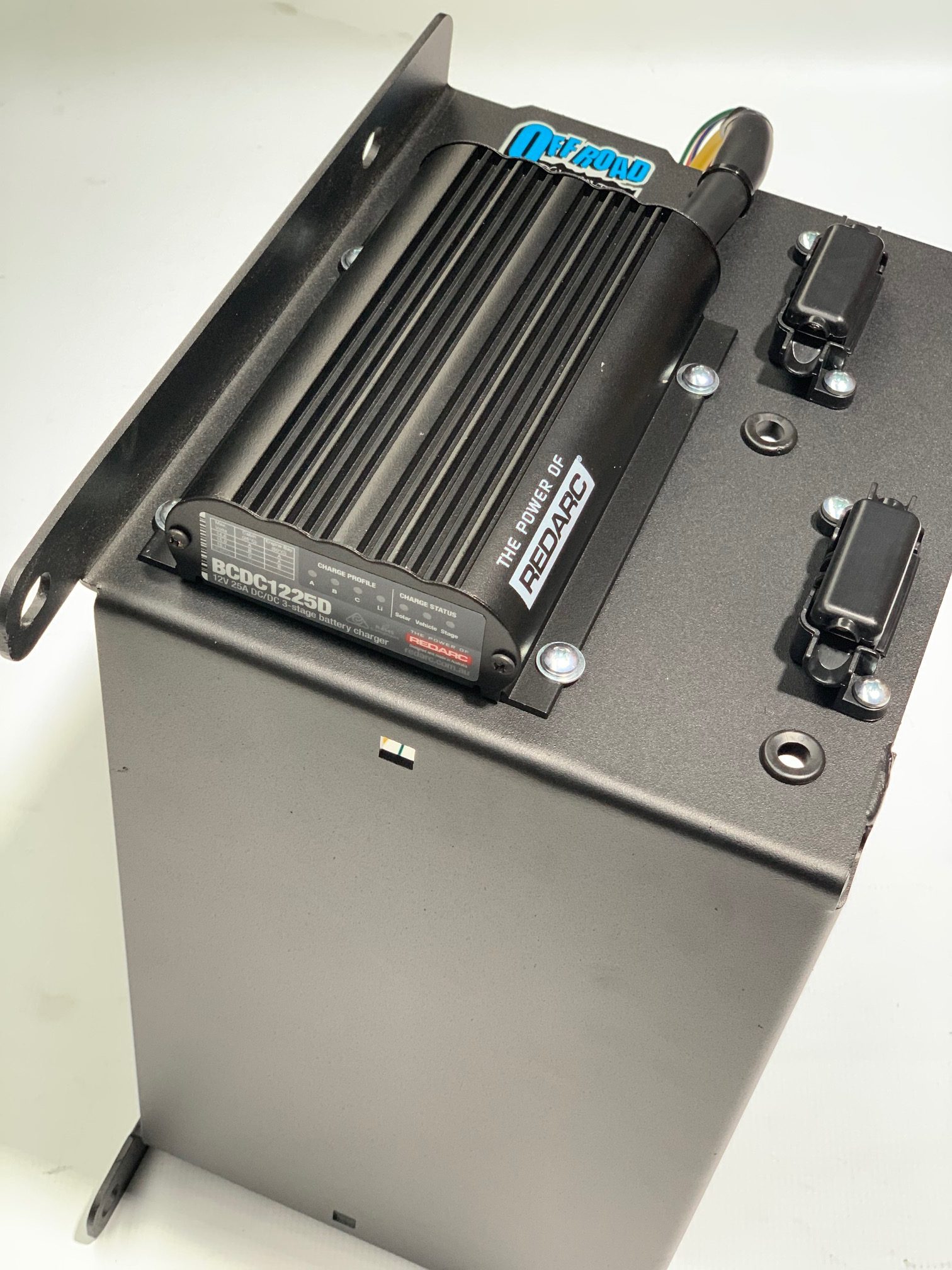

Smartly integrated DC-DC charger mounting provisions on the rear side of battery tray to cater for Redarc BCDC1225D , BCDC1240D and BCDC1250D model chargers. (Available Separately)

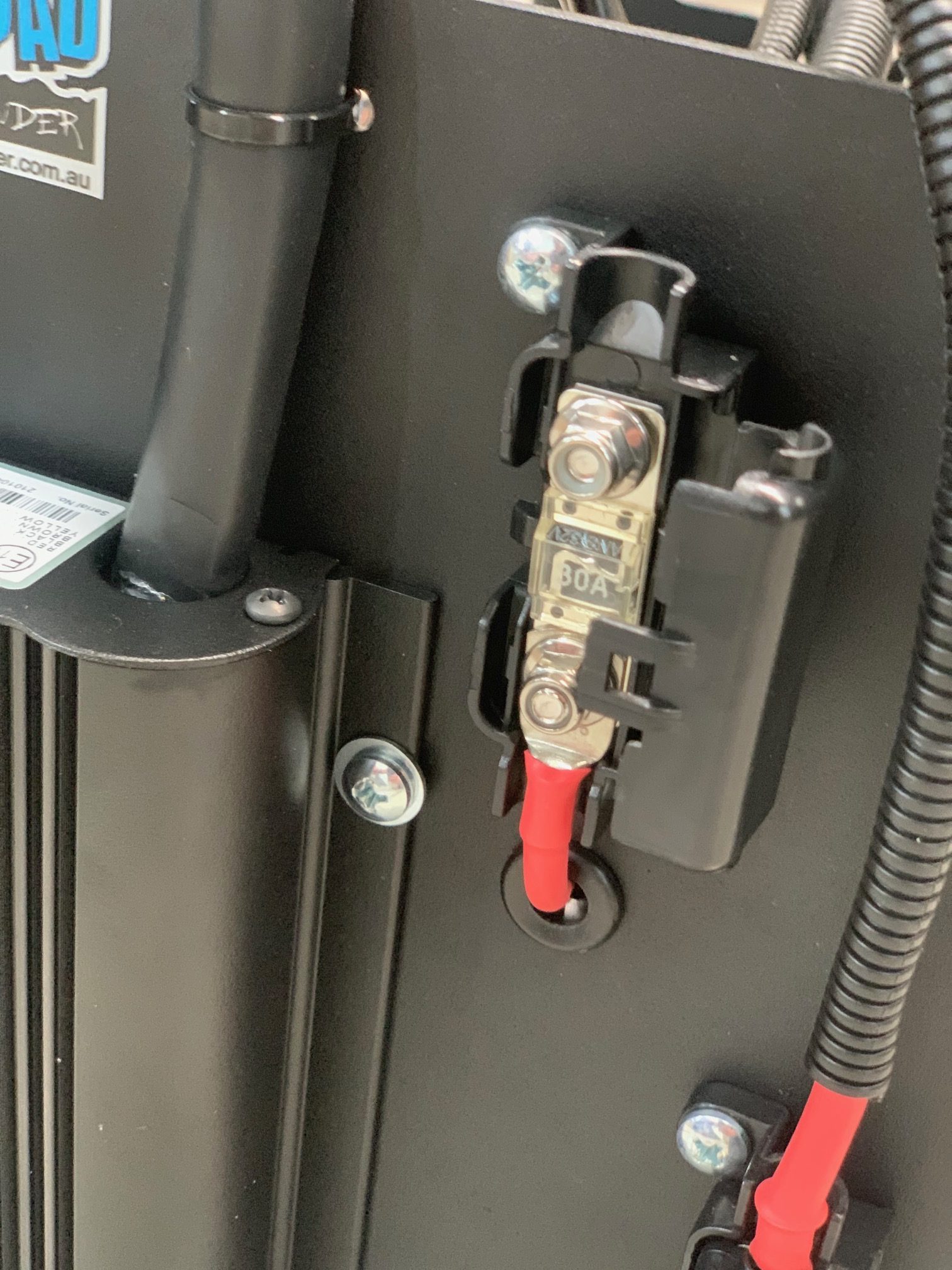

(2) x midi fuse provisions on the side of battery tray with cable entry grommets to allow cables inside battery tray.
ORD have designed the front of the battery tray so it is solid metal end (no exposing cut outs) creating a protection shield to avoid any stone pecking to battery and electrical components.
Heavy Duty hold down clamp system – holds N70 size battery up to 315mm long, 170mm wide and 216mm high
Heavy Duty Battery tray is manufactured from 3mm thick mild steel
Premium Black powder-coat finish with durable zinc rich primer for protection.

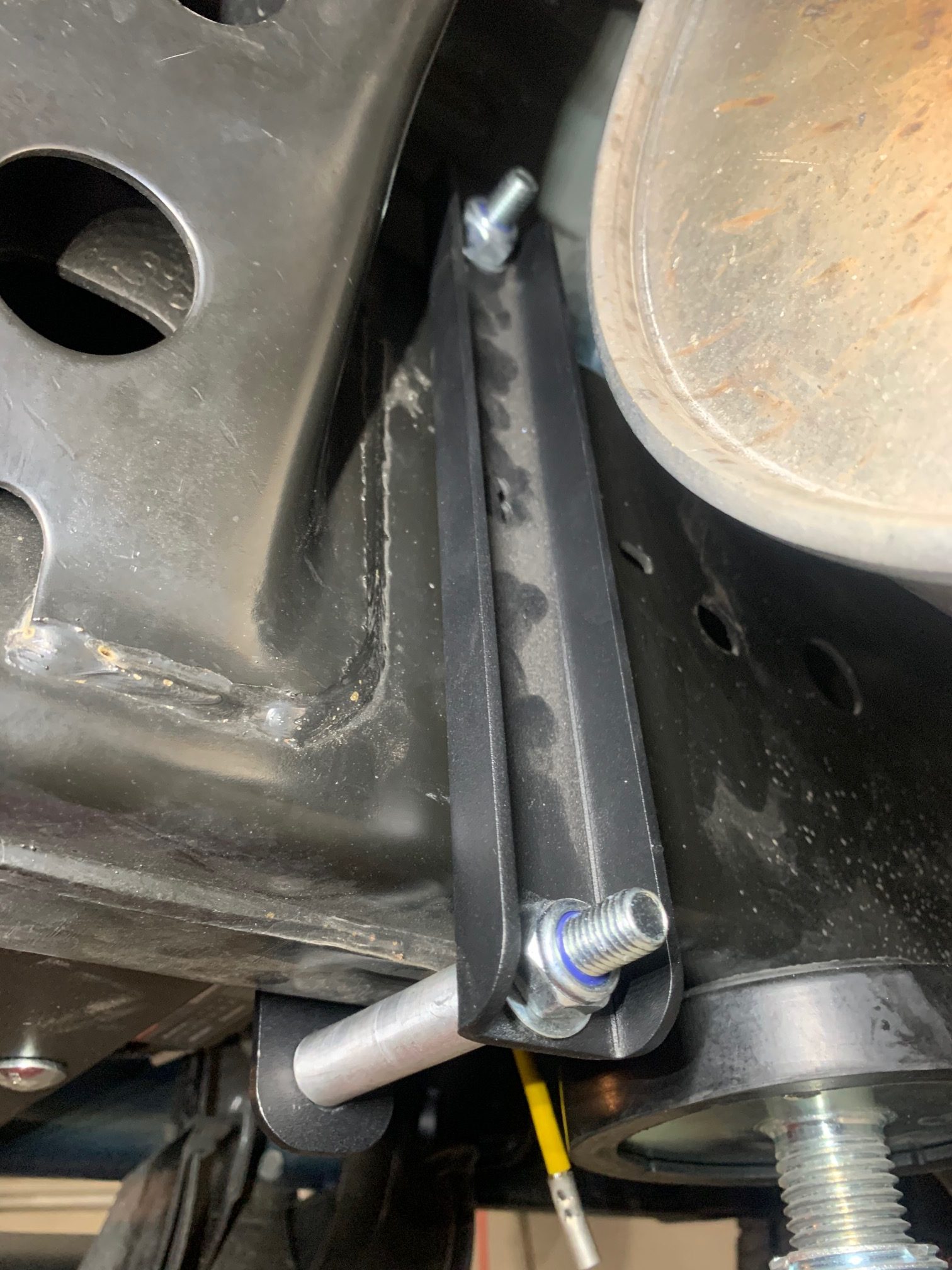

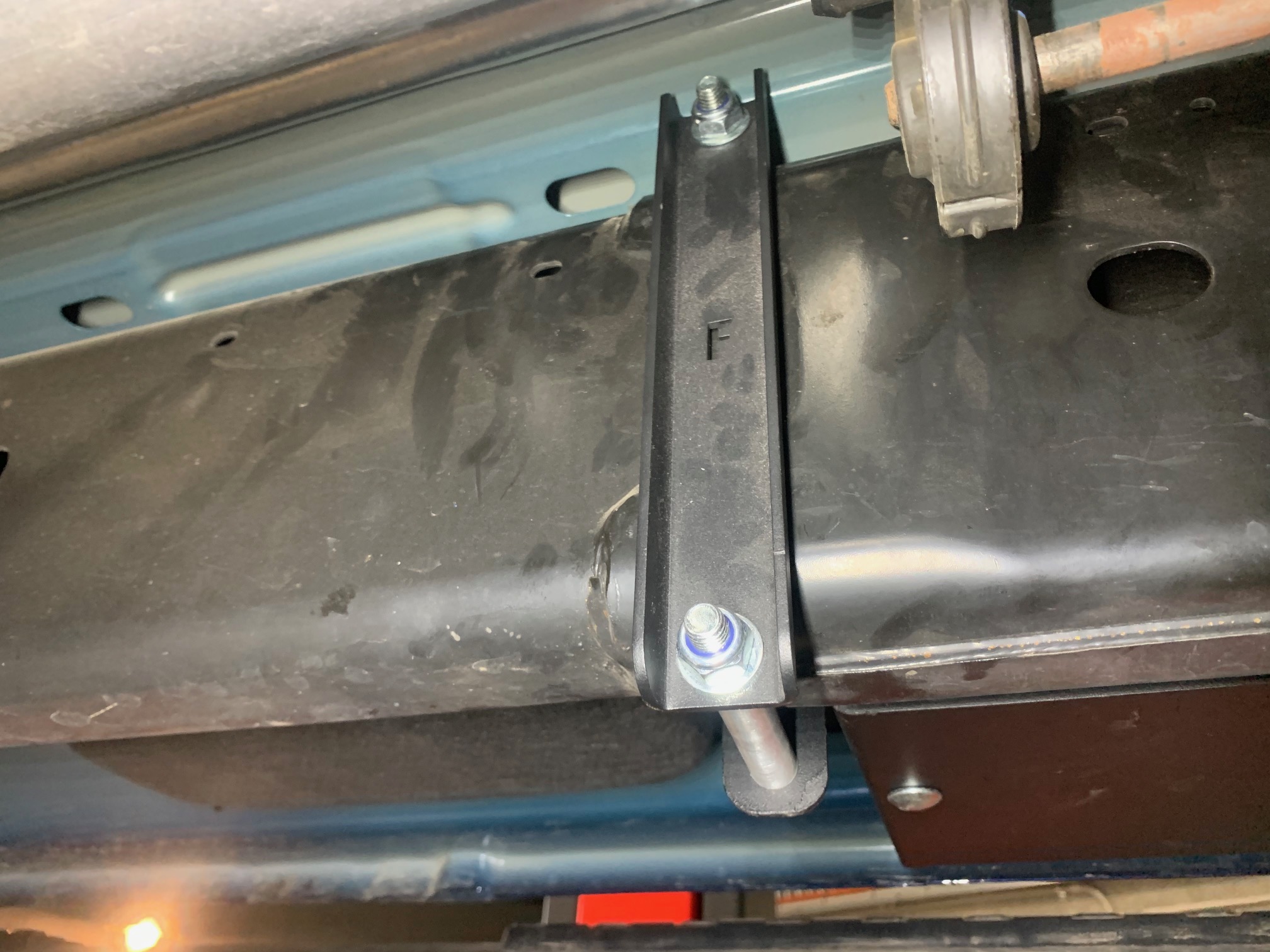

No drilling into chassis, as it is a clamp mounting system with heavy duty brackets and custom machined alloy crush spacers and high tensile bolts.
(2) x Rubber battery terminal covers supplied (Positive & Negative)
All the required hardware, crush tubes supplied in the kit along with full detailed installation instructions.
