Description
SKU: BTSL60-UNI-NG

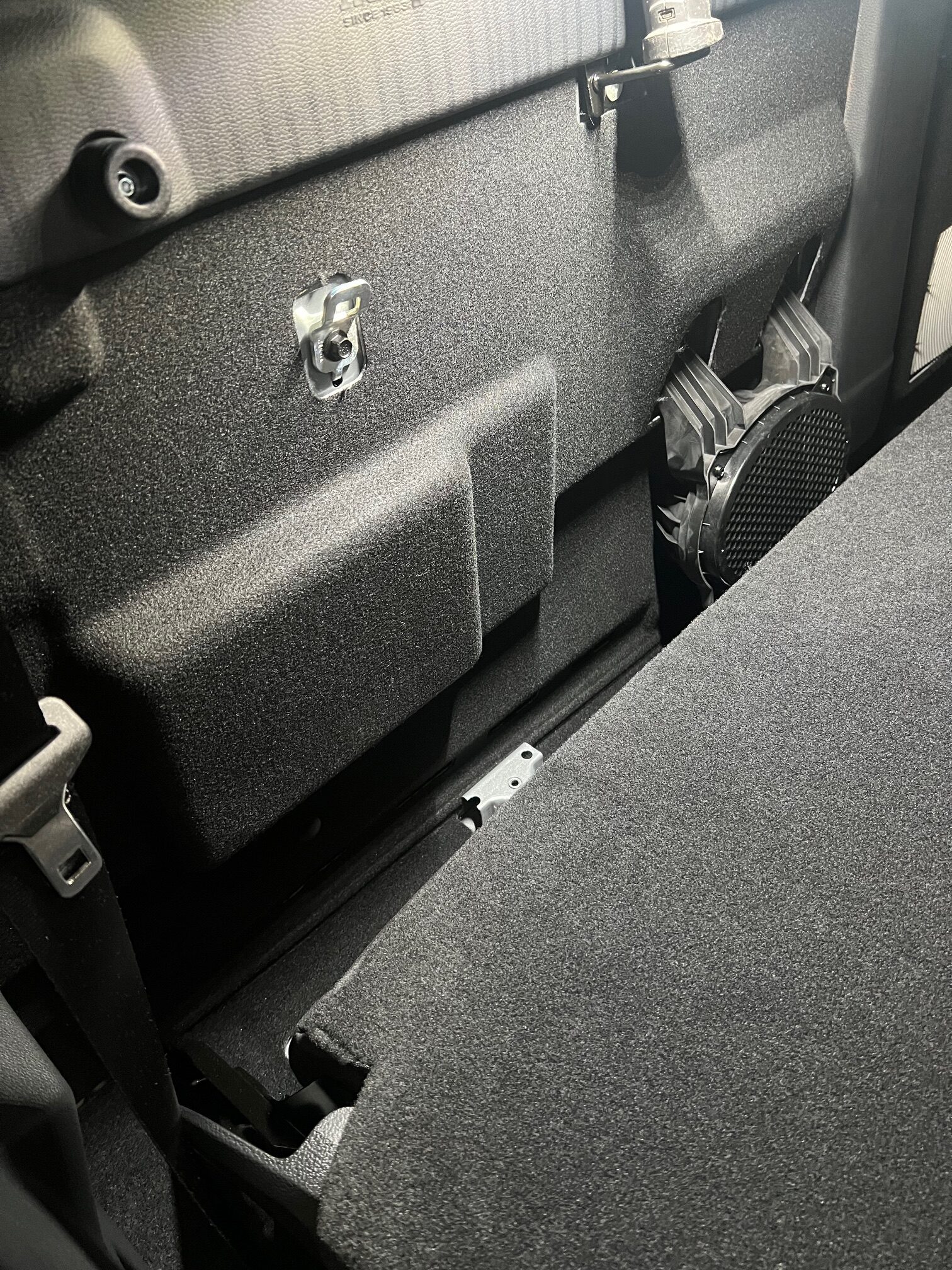

Our latest Off Road Downunder Pty Ltd Slimline Battery Tray is designed for the latest lithium slimline batteries to allow a stealth installation, in particular this package is suitable for mounting behind the rear seat in the latest Ford Next Gen Rangers and Raptor even if the model has a subwoofer.

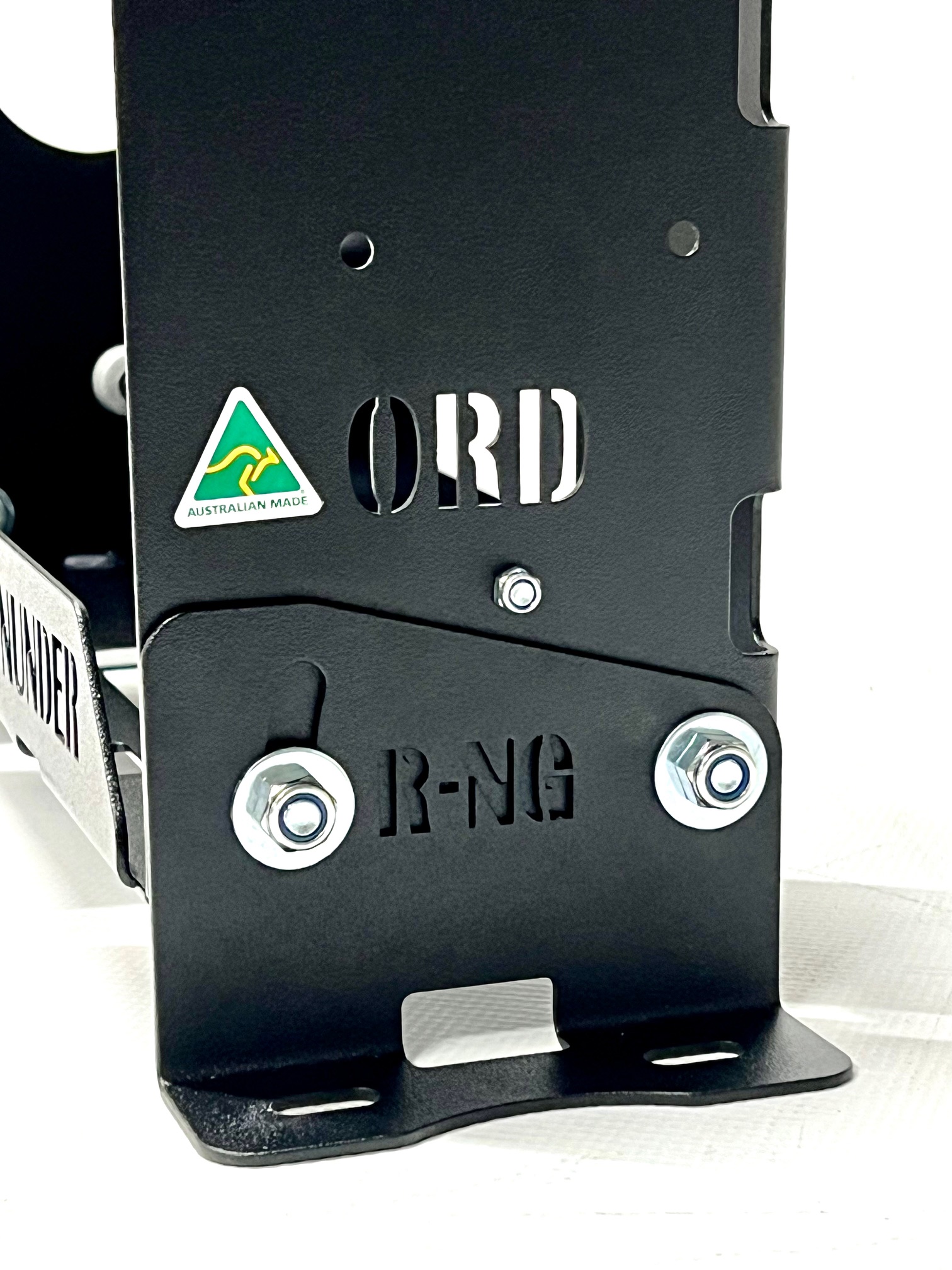

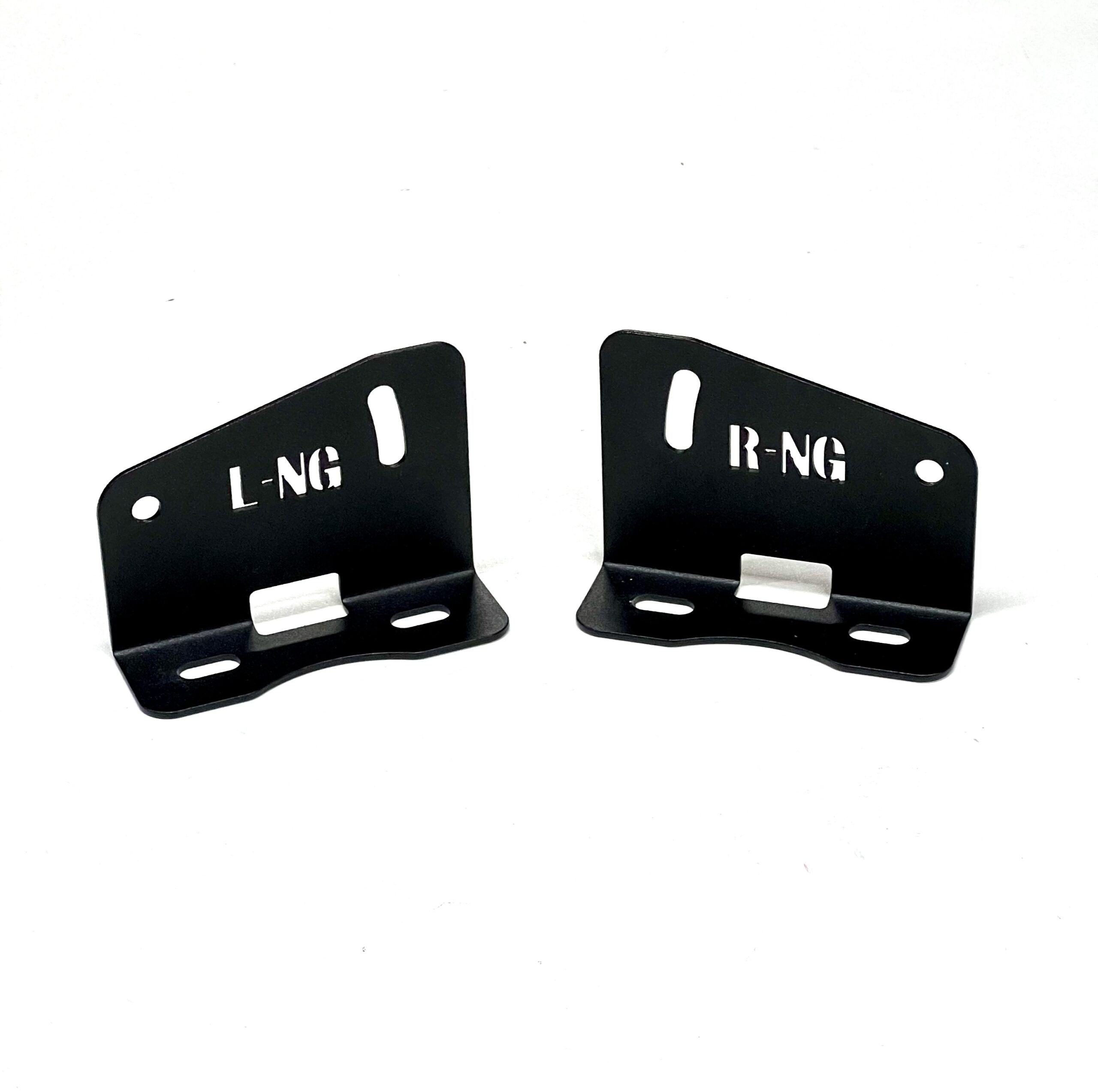

This unique kit provides the taller “NG” mounting brackets at the bottom so battery tray base clears the factory floor pan raised brackets… this way you do not have to cut and grind brackets off.
The ORD Slimline Battery Tray is designed for the Invicta 50Ah or Revolution Power 60Ah Slimline Lithium battery, however it will accept any battery with a maximum size of 297mm L x 112mm W.
Just to give you an idea of capacity….The Revolution Power lithium battery is packed with 60 USABLE amp hours so it runs 10% longer than a 100Ah AGM battery but weighs a minuscule 7.7Kgs.
Design Registered and Certified Product (number: 201916430) – Australian Made and designed by Off Road Downunder Pty Ltd.
Key features:
- Unique registered design mounting system with adjustable rearward tilt: Designed specifically to allow the battery tray to match cabin panel angle behind rear seat on dual cab utilities. Offers 17 degrees of rearward tilting range.
- Mounting provisions for Redarc BCDC1225D, BCDC1240D or BCDC1250D chargers as well as Projecta IDC25 and IDC25X charger.
- Midi Fuse holder provisions x 2 (Midi fuses and holders are sold separately)
- Raised mounting base for ease of cable routing underneath.
- Zinc under coated and finished in durable black powder-coat.
- Battery location bump stops.
- Battery hold down cam-buckle straps x 2

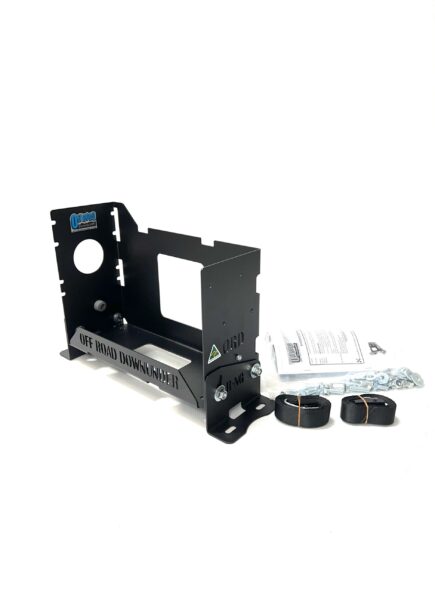

- Installation instructions and mounting hardware including nutserts provided.
Product Sizes:
External Length of battery tray including mounting feet = 410mm L
External Length of battery tray without mounting feet = 325mm L
Height including raised “NG” mounting feet = 263mm H (without tray tilting back)
Total Width = 120mm W
NOTE: BCDC charger , Lithium battery and midi fuse holders are not included. (Shown in images for display purposes Only)
Please send us an email if you would like a package deal with Battery Tray, Lithium Battery, Redarc 25Amp BCDC Charger and 2 x Midi fuse holders with fuses.
