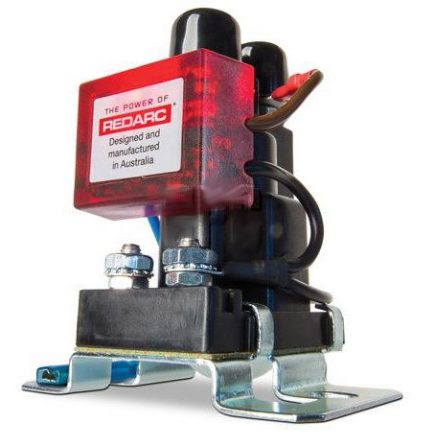

The Redarc SBI12 is a microprocessor-controlled battery isolator which preserves the main starting battery from excessive discharge whilst utilizing the auxiliary battery to power up your accessories. The solenoids are recognized throughout Australia for reliability & simplicity in 4WD and commercial grade applications, this is the reason why Off Road Downunder is proud to have Redarc Isolators as part of our product range.
The Redarc SBI12 primarily monitors the main start battery voltage. Once the start battery reaches 13.2 volts, the solenoid automatically connects the auxiliary battery to the charging system.
When the whole system drops to 12.7 volts the solenoid opens and isolates the start battery from the auxiliary battery. This ensures you should never have a drained start battery again.
The Redarc’s Smart features:
- Sophisticated fault detection with flashing LED light indication.
- Easy installation with comprehensive instructions
- Compact in size
- Quality silver contacts for corrosion resistance
- Surged protection suitable for current 4wd’s
- Low current draw of approximately 0.15Amp when engaged
- 2 year manufactures warranty.
The Redarc SBI12 has an override function capability which allows you to link the batteries together, via a push of a button wired into cabin. (Push button switch not supplied).
You can use this option if required, to help start the car or assist when winching.
Specifications for Redarc SBI12:
- Dimensions (mm) 75L x 63W x 80H
- Voltage 12 volt
- Off Volts 12.7 volts
- On Volts 13.2 volts
- Max Cont. A 100 amps
- Max Inrush A 400 amps
- Weight (kg) 0.2
Installation instructions supplied with wiring diagrams for easy fitment.
