Description

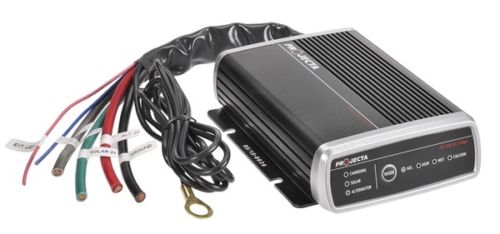

Projecta IDC25
Automatic 9-32V 25A 3 Stage DC/Solar Battery Charger
Allows you to charge your 12V second/auxiliary deep cycle battery on the go, simultaneously from solar and alternator (9-32V) inputs. Provides an advanced 3 stage charging process to produce a safe and comprehensive charge, a must for deep cycle batteries. Loaded with a host of safeguard features, the easy to install unit includes over/under voltage, anti-sparking, reverse connection and over temperature protection systems to ensure peace of mind.
Dual Charging Modes / Dual Input Operation
Simultaneous dual battery charging from both solar and alternator inputs
Engine Bay Installation
Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C
Multi-Chemistry
Set the charging profile to suit battery chemistry type: Wet, Calcium AGM or Gel
Caravan installation
Combines your solar and vehicle’s power to deliver a comprehensive multi-stage charge ensuring longer battery life and performance.
4WD installation
A sophisticated dual battery charger engineered for in-vehicle or under bonnet installation on vehicles fitted with traditional or smart alternators.
| SPECIFICATIONS | |||||
|---|---|---|---|---|---|
|
PART NO |
IDC25 |
||||
|
CHARGE TYPE |
3 Stage |
||||
|
ALTERNATOR INPUT VOLTAGE |
9-32Vdc |
||||
|
MAX SOLAR INPUT |
23Vdc, 385W |
||||
|
OUTPUT CURRENT |
Input 9-11Vdc 20A, |
||||
|
BACK DRAIN ON AUX BATTERY |
9.5-10.5mA |
||||
|
CHARGER CONTROL |
Gel: 14.1V, |
||||
|
BATTERY CAPACITY |
75-300Ah |
||||
|
BATTERIES SUPPORTED |
Gel, AGM, Wet & Calcium |
||||
|
SMART ALTERNATOR |
|
||||
|
CONVENTIONAL ALTERNATOR |
|
||||
|
OPERATING TEMPERATURE |
-10°C to +80°C |
||||
https://www.projecta.com.au/s/IDC25_Instruction_Manual.pdf
https://www.projecta.com.au/s/Projecta_IDC25_NPR.pdf
