Description
ORD Premium Battery Box (SKU:ORD-BBOX2)
The ORD Premium Battery Box provides a safe and secure protective aluminium box for an auxiliary battery – no plastic boxes here…
Ideal for 4×4’s, SUV’s, sedans, utes, vans, wagons, trucks, motor homes and even the likes of horse floats.
Perfect ‘universal’ solution for fleet vehicles and also its an easy installation and transfer over on vehicles that are changed over on high rotation.
Designed Registered and Manufactured by Off Road Downunder
- Australian Made
- Vertical OR Horizontal installation options. (Optional ORD Inverter bracket can only be mounted when Battery Box is in the Vertical orientation)
- TIG welded light weight alloy construction design
- Modern ORD black powder-coat finish
- 4 x cable glands supplied for entry / exit points
- Removable lid to allow access for battery maintenance
- Air ventilation cutouts at the base and under the lid
- BCDC Charger mounting provisions with wiring grommet to suit the following: All Redarc BCDC ‘CORE’ and ‘CLASSIC’ Range and the latest Projecta IDC25X DC-DC Charger NOTE: REDARC BCDC CHARGER IS AVAILABLE SEPARATELY AND IS SHOWN FOR DISPLAY PURPOSES ONLY.
- Heavy Duty Battery hold-down system to cater for different height and length batteries with the adjustable lower brackets.
- (4) mounting provisions for both Vertical and Horizontal applications as shown below. NOTE: If Inverter bracket is fitted the battery box can only be mounted in the upright vertical position.
Suitable Battery Selections: (Other battery brands not listed below that are a similar size are still suitable)
Examples of Lithium Batteries
- Invicta Black series Lithium 100Ah 306mm L x 168mm W x 216mm H
- Invicta Xero 100ah lithium battery (as shown in photo gallery)
- Invicta Xero 120ah Lithium Battery (as shown in photo gallery)
- Revolution Power Lithium Battery 100Ah High Draw (RPL12-100) 305mm L x 168mm W x 213mm H
- Redarc Alpha 150 12v 150Ah Lithium Battery (LBAT12150-SB) 353mm L x 175mm W x 190mm H *Redarc states it can support a 2000w Pure Sine Wave Inverter.
- PowerPaul Australia 170Ah lithium 12.8v (N70-170) 328mmL x 172mmW x 212mmH – Australian Made Battery
- Itech World (iTECH160X PRO) 160ah lithium battery 330mm L x 173mm W x 215mm H
- Itech World (iTECH120X PRO) 120ah lithium battery 330mm L x 173mm W x 215mm H
Examples of AGM Batteries – Full River
- Full River 150Ah 12v Deep Cycle (DC150-12) 327mm L x 182 mm W x 266.5mm H (body) 294mm H (Inc Terminals)
- Full River 140Ah 12v Deep Cycle (DC140-12) 341mm L x 172 mm W x 254mm H (body) 289mm H (Inc Terminals)
- Full River 120Ah 12v Deep Cycle (DC120-12) 331mm L x 175 mm W x 214mm H (body) 218mm H (Inc Terminals)
- Full River 105Ah 12v Deep Cycle (DC105-12) 307mm L x 169 mm W x 215mm H (body) 236mm H (Inc Terminals)
Maximum Battery Casing: 345mm Long x 285mm High x 197mm Wide
Product External Dimensions: Length = 510mm x Width = 215mm x Height = 345mm
Total Product Weight = 6.5 kg + additional Inverter mounting bracket if required = 1 kg
Vertical Orientation Optional: Inverter Bracket

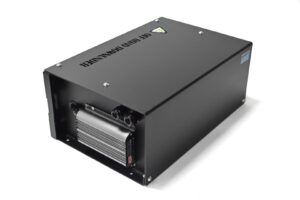

Horizontal Orientation
