Description
Behind Rear Seat Dual Battery Mounting Bracket (New model V2)
Vehicle suitability: Toyota LandCruiser 79 Series – Dual Cab
Position: Behind the rear seat Drivers side (Aus) on cabin rear wall.
Our new V2 (2026) mounting bracket is not only a universal mounting plate for other super slimline batteries, but now it is also purposely designed to suit the INVICTA & ITECHWORLD 100ah super slimline lithium battery with a Redarc OR ITECHWORLD BCDC charger as detailed below.
The ORD mounting bracket makes installation a breeze whilst providing a high quality professional installation inside your 79 series LandCruiser, and it utilizes the factory Toyota mounting points.
Description:

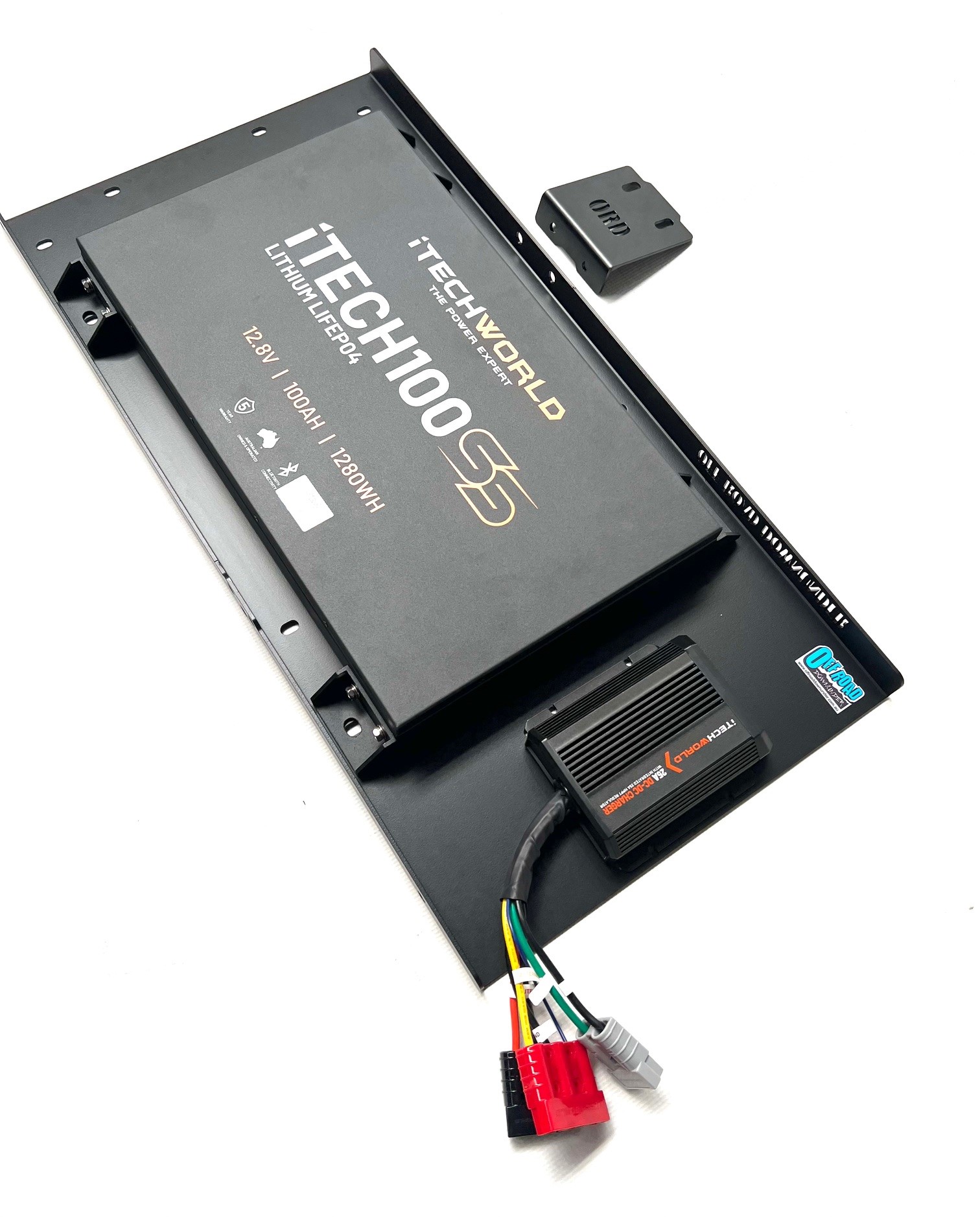

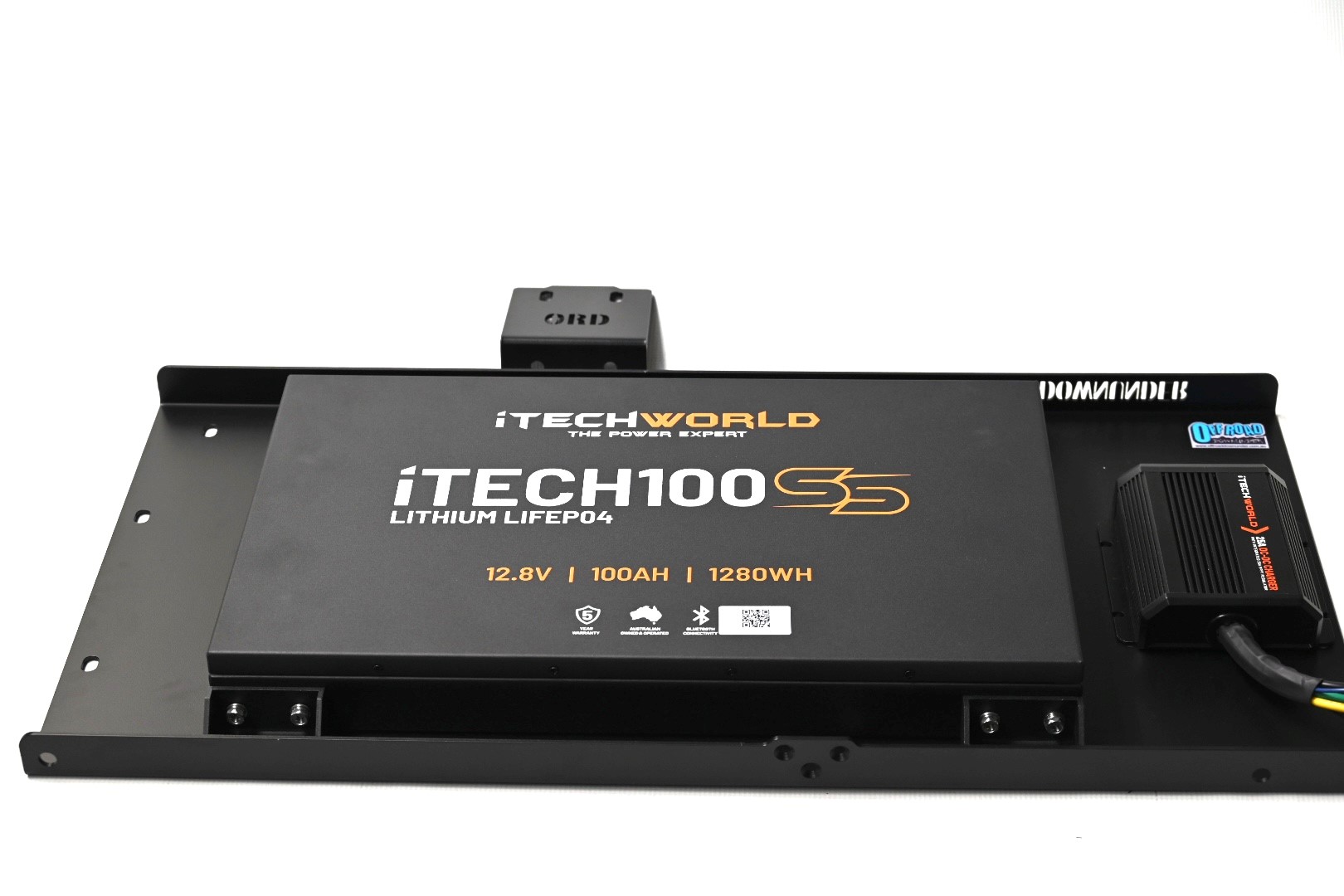

The new V2 mounting bracket is designed with the bolt pattern for the following Super Slim Lithium Batteries:
- Invicta 100ah Super Slim Lithium Battery (SNLSS12V100BT)
- Itechworld 100ah Super Slim Lithium Battery New 2025 Model (ITECH100SS)
- Also universal mounting plate for other branded ‘Super Slimline’ Lithium Batteries around the 100AH capacity (*Depending on dimensions of battery, please refer mounting bracket size).

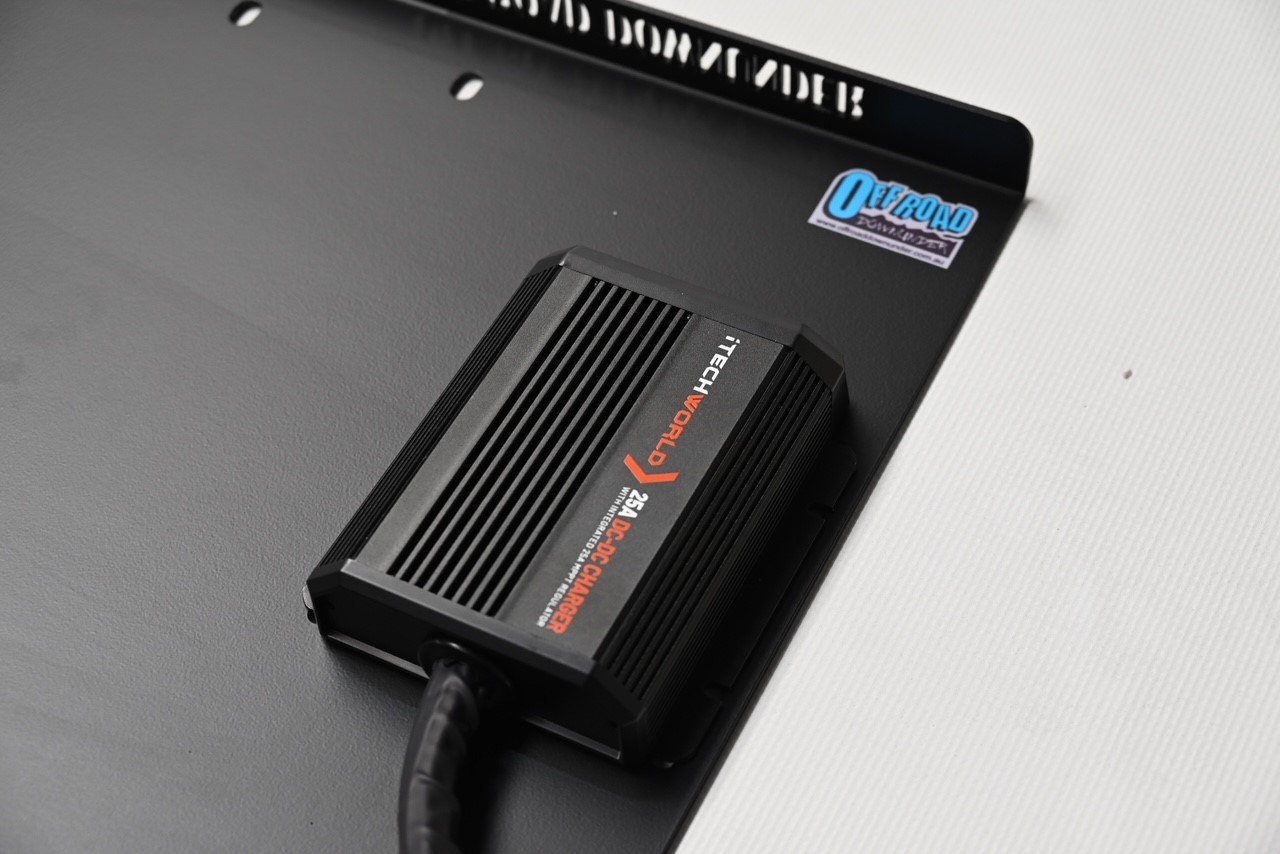

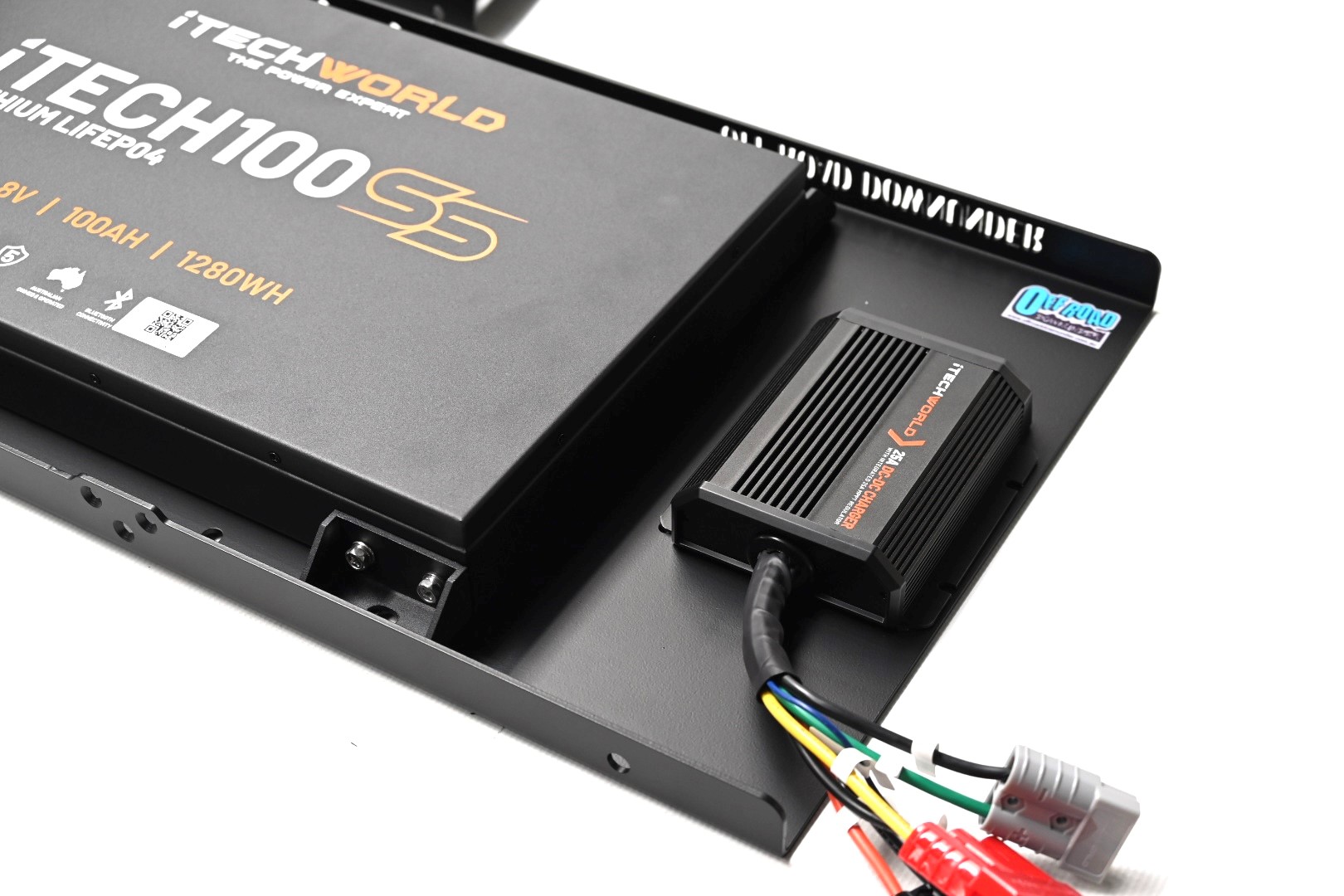

Mounting provision for DC-DC Charger:
- Redarc BCDC chargers ‘Classic and CORE’ 25amp , 40amp and 50amp.
- Itechworld DCDC Chargers 25amp (ITECHDCDC25) and 40amp (ITECHDCDC40)
- Quality Australian Made

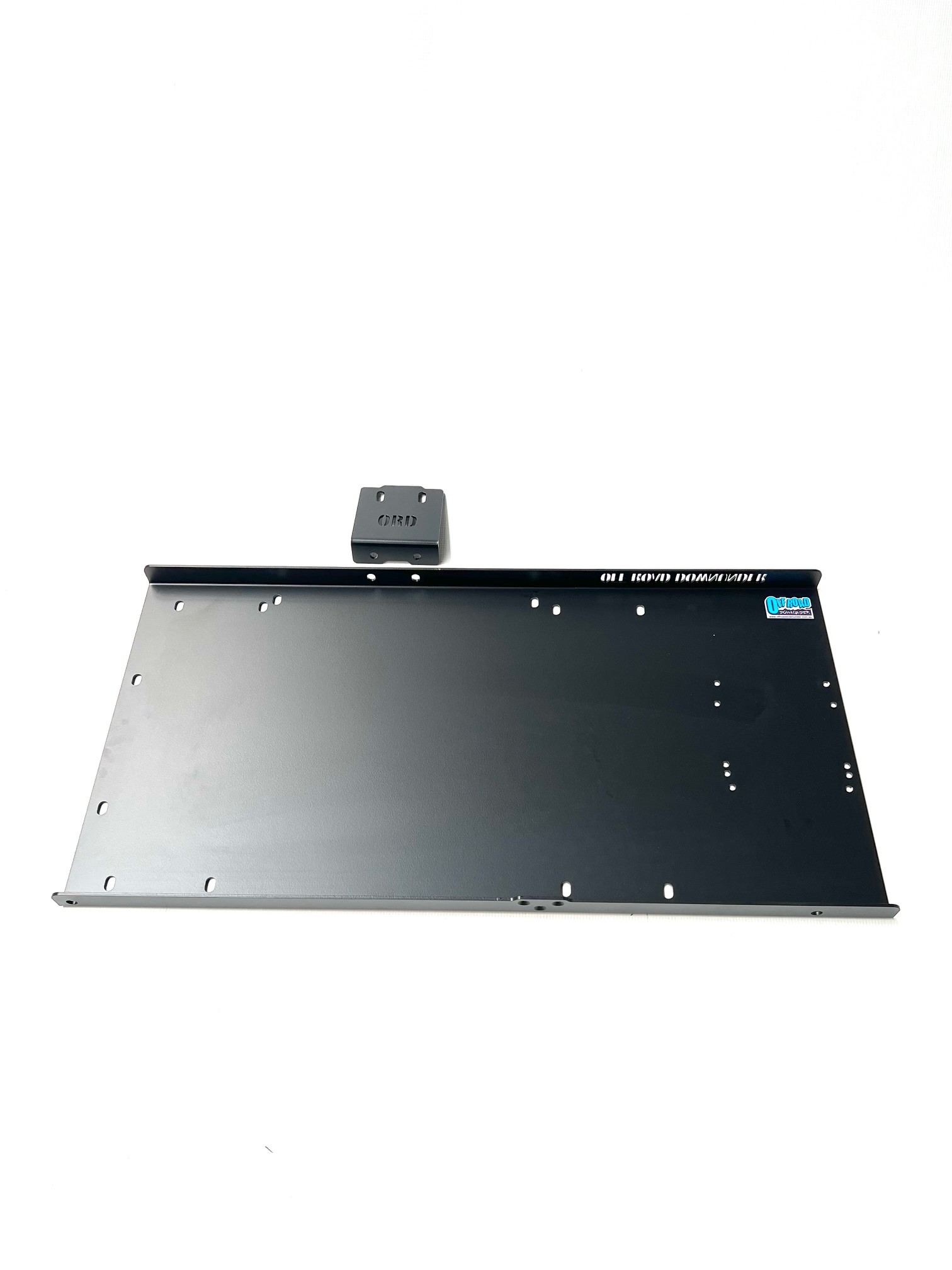

- 3mm Aluminium mounting plate/Zinc Steel bracket coated with a premium ORD black powder-coat finish.
- Fixing hardware included for bracket (nutserts) and hardware.
- Utilizes the existing factory hole positions of cabin floor and rear wall.
- The V2 bracket can still be fitted with the Multidrive Technology child restraint anchor kit.
- Design Registered & Manufactured by Off Road Downunder Pty Ltd.
Mounting Bracket Size:
Total area without a Redarc BCDC charger mounted = Width 750mm x Height 353mm usable between hardware top and bottom.
Total area with a Redarc BCDC charger mounted = Width 620mm x Height 353mm usable between hardware top and bottom.
Battery Size Guide:
Size of example battery casing (plain black): 635mm L x 265mm W x 50mm W
Invicta 100ah Super Slim Battery size: 523mm L x 336mm W x 57.4mm W
ItechWorld 100Ah (ITECH100SS) Length 487mm x Height 290mm (358mmH incl brackets) x Width 55mm
*NOTE: Batteries and chargers are for display purposes only and the product is the Off Road Downunder mounting bracket ONLY.
Bundle deals are available with Invicta 100ah SS Lithium Battery, Mounting bracket and Redarc 25amp BCDC charger.
