Description

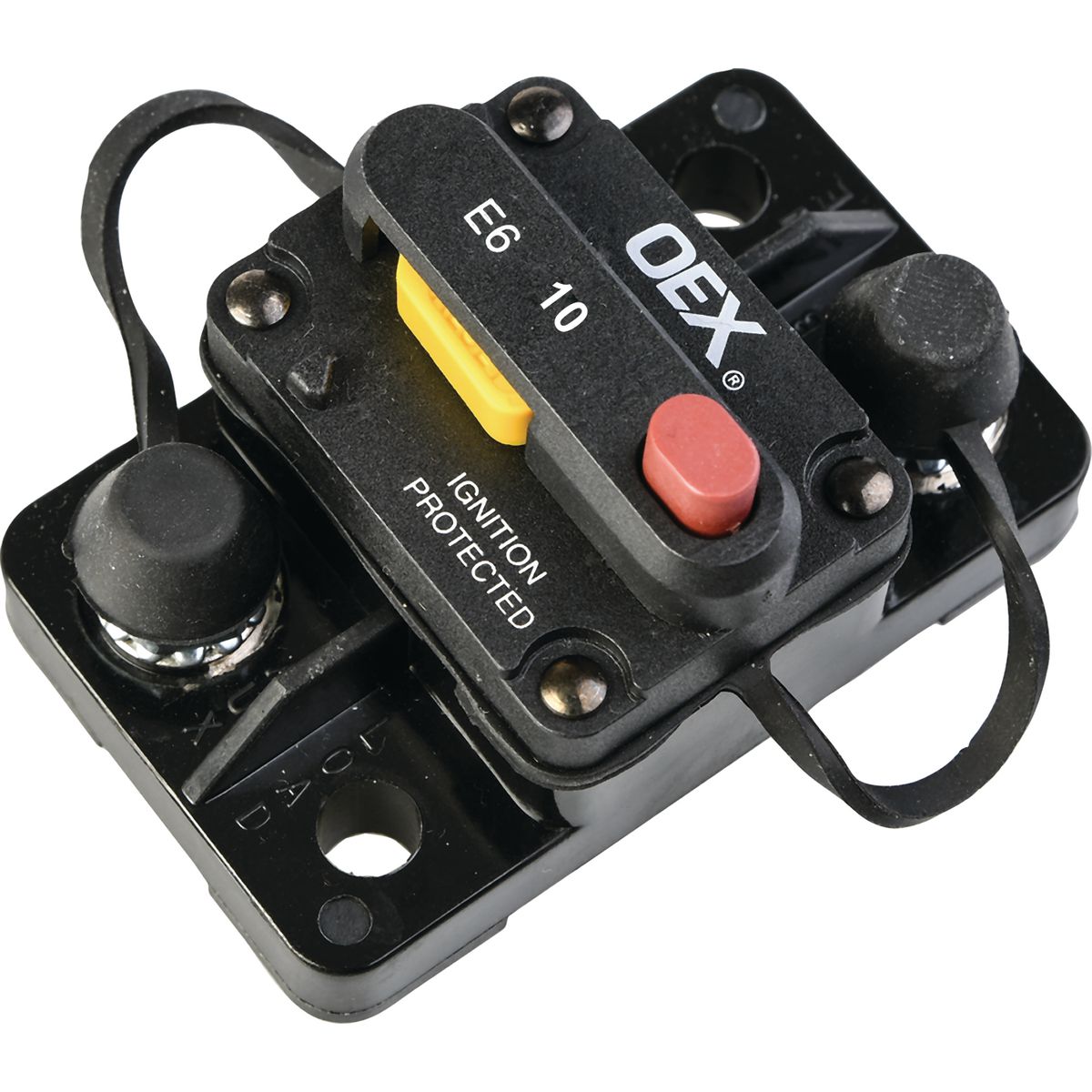

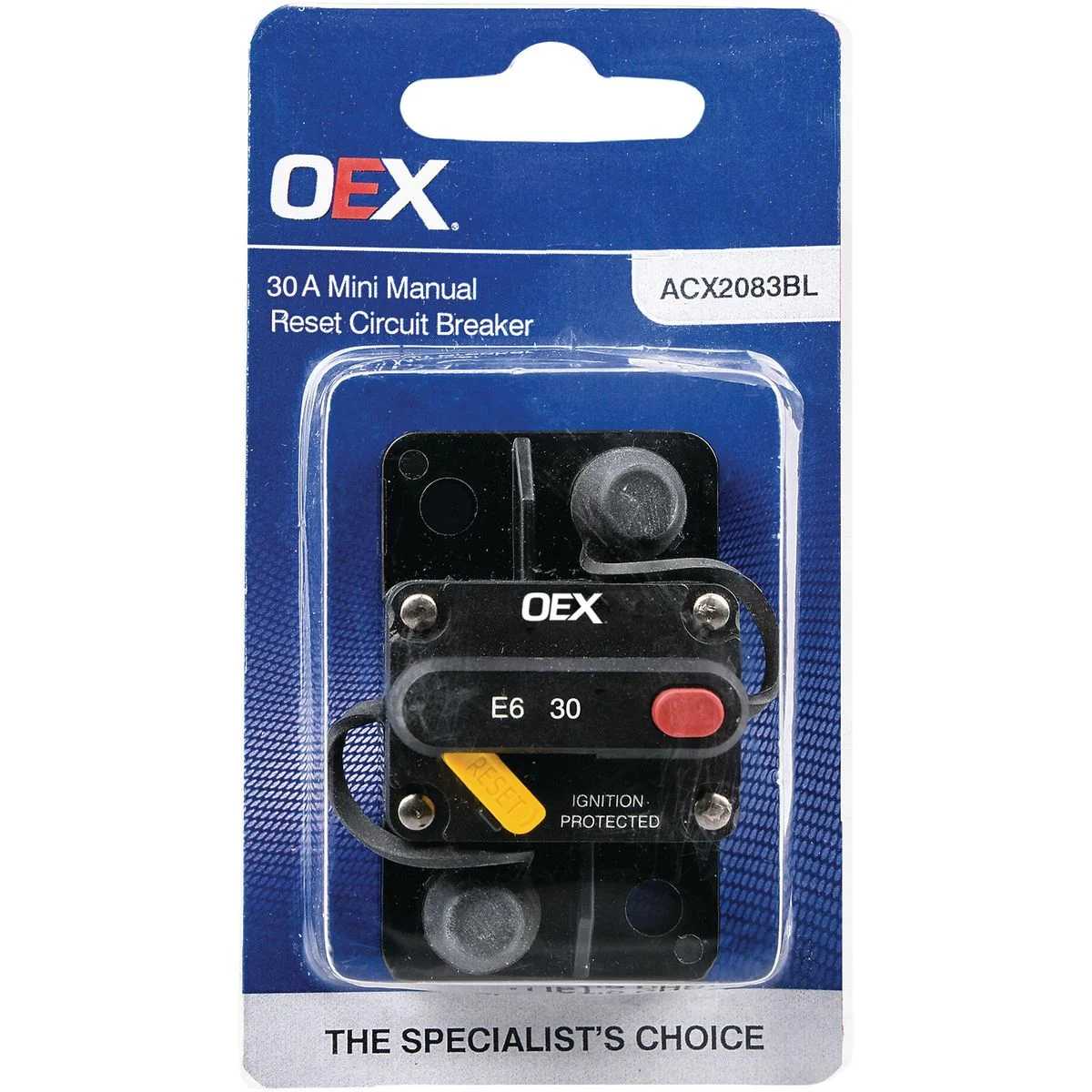

OEX Mini Manual Reset Circuit Breaker, Type 3, Switchable – Single pack.
At ORD we have hand picked these latest Mini circuit breakers to add to our range, as with less under-bonnet space available in modern vehicles than ever before, these mini circuit breakers provide the perfect solution for circuit protection required in the 4WD vehicle, RV, Caravan and camping markets.
Features
- Compact Mini Surface Mount
- Dimensions: 58.2mm (H) x 35.7mm (W) x 34.7mm (D)
- Type 3 – Manual Reset ( with switchable), rated 32V DC
- #10-32 threaded studs. Terminal / lug to suit: 6mm or ¼ inch
- IP66
- Housing: Thermal plastic UL rated 94VO
- Operating Temp: -40°C to 85°C
- Compliance: SAE J553, J1171, UL1500 (ignition protected)
- Protective stud insulators included
- Pack Quantity: 1
- Single units available in 10A, 15A, 20A, 30A, 40A, 50A & 60A
