Description

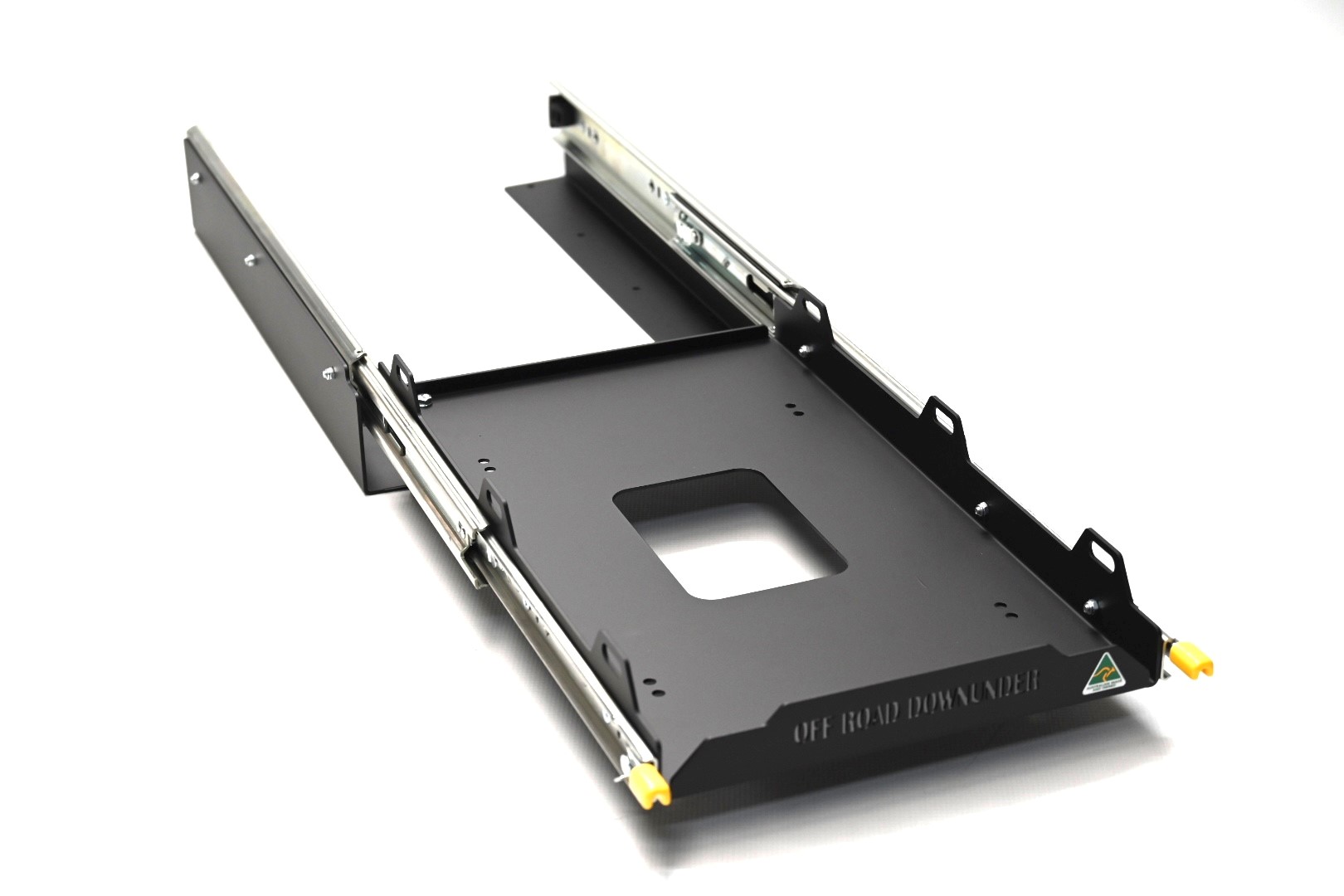

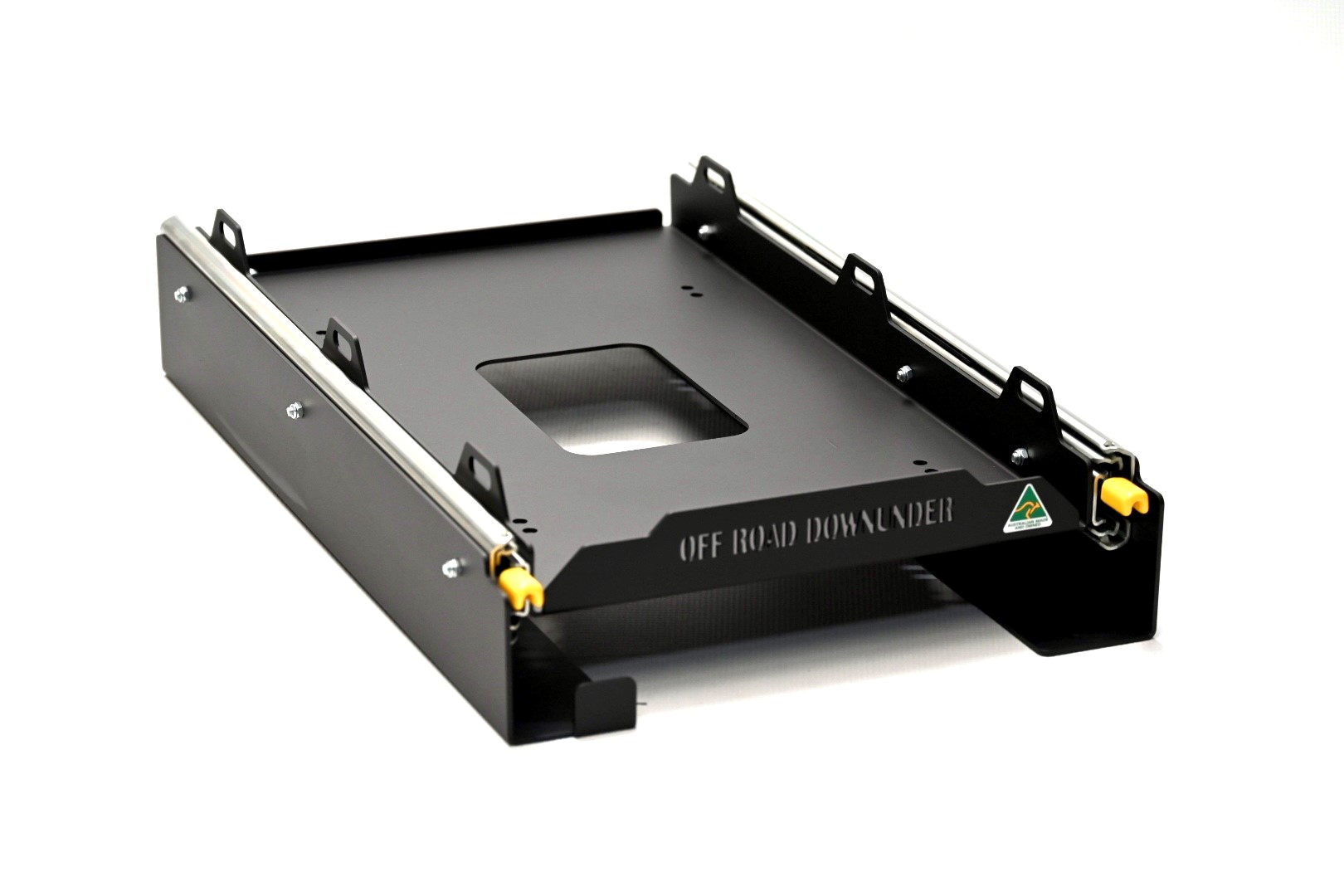

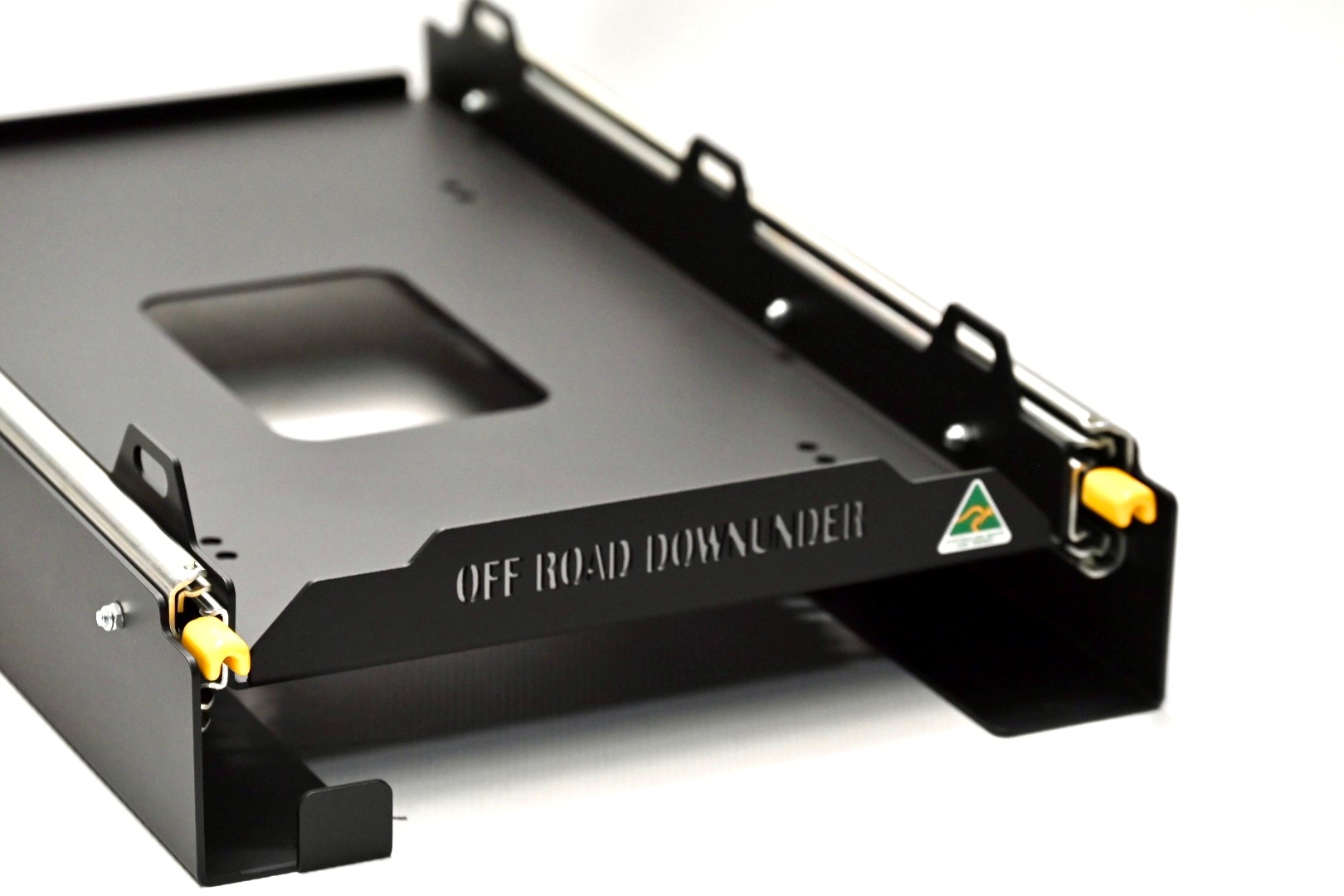

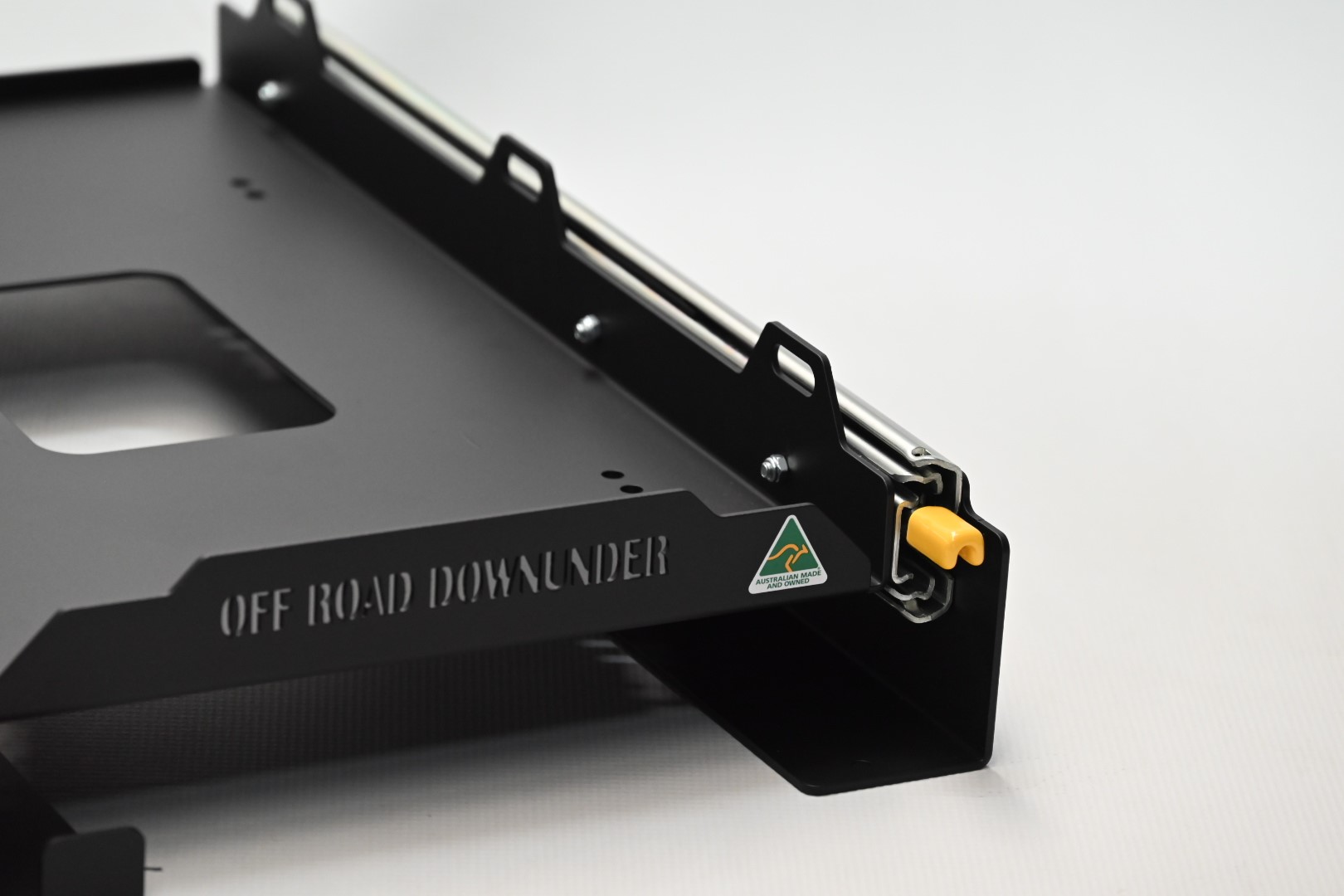

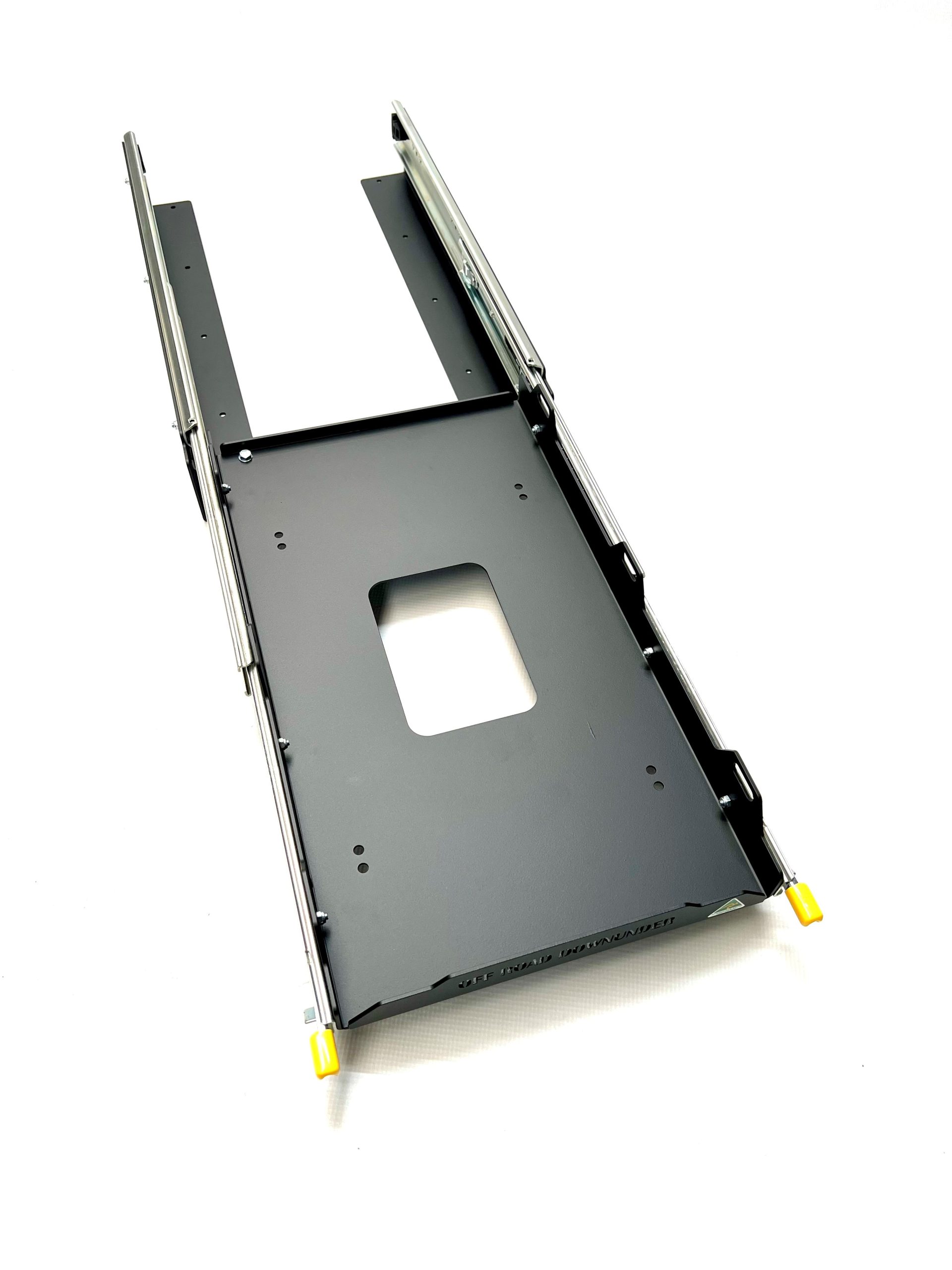

ORD Generator Slide
Life is very easy with an Off Road Downunder Generator slide installed. No more lifting or moving your generator, simply slide out and start the generator.
The Off Road Downunder Generator Slide is specifically designed to suit the Honda EU20i & the latest EU22i generators, whilst also suitable for the latest Yamaha 2200is , but will accommodate other brands of equal size. The new model is a slim-line design with a raised tray base, primarily to suit Thetford Caravan service door hatches.
The tray on the generator slide incorporates mounting holes, so the Honda Generator can be easily bolted to the slide base. This option makes it a very neat & tidy installation, without the need for restraint straps, but also providing great security. Using strong 125kg rated slides with Dual Locking Levers, ensures firm locking provisions in both the extended and closed positions.
Features:
- Zinc undercoated and top-coated in durable ORD Black Powder-coat finish
- Quality Australian Made Product by Off Road Downunder Pty Ltd.
- Integrated safety locking mechanism to prevent full extension disconnect.
- Six slotted tie down provisions to suit cam-buckle straps (straps sold separately)
- Holes in tray base to allow permanent bolt down of Honda EU20i or EU22i generator (4 x bolts and washers included)
Internal Tray Size: 282 mm wide x 500 mm long.
Total External Dimensions: 338 mm wide (including external nuts) x 535mm long
Total Height: 107 mm
Height from mounting floor level to bottom of drawer slide when in open/extended position: 42 mm (to clear recessed step of door opening)
Tray base height from mounting level: 52 mm
Width of tray + drawer slide Locking Levers : 322 mm wide (measurement used for door opening of hatch when in extended position)
- The ORD Generator slide is not suitable for exterior mounting where it is exposed to all weather conditions, as if will effect the operation of the multiple ball bearings in slides. To comply with ORD manufactures warranty, installation is recommended inside vehicle cargo area, or in a suitable compartment/hatch so it is not exposed to any harsh elements.
NOTE: Generator Slide Only- Generator and tie-down strap are for display purposes only (Straps are sold separately)
