Description
LAND ROVER DEFENDER 110 body: 5-Seater (Installation vehicle shown is the D300)

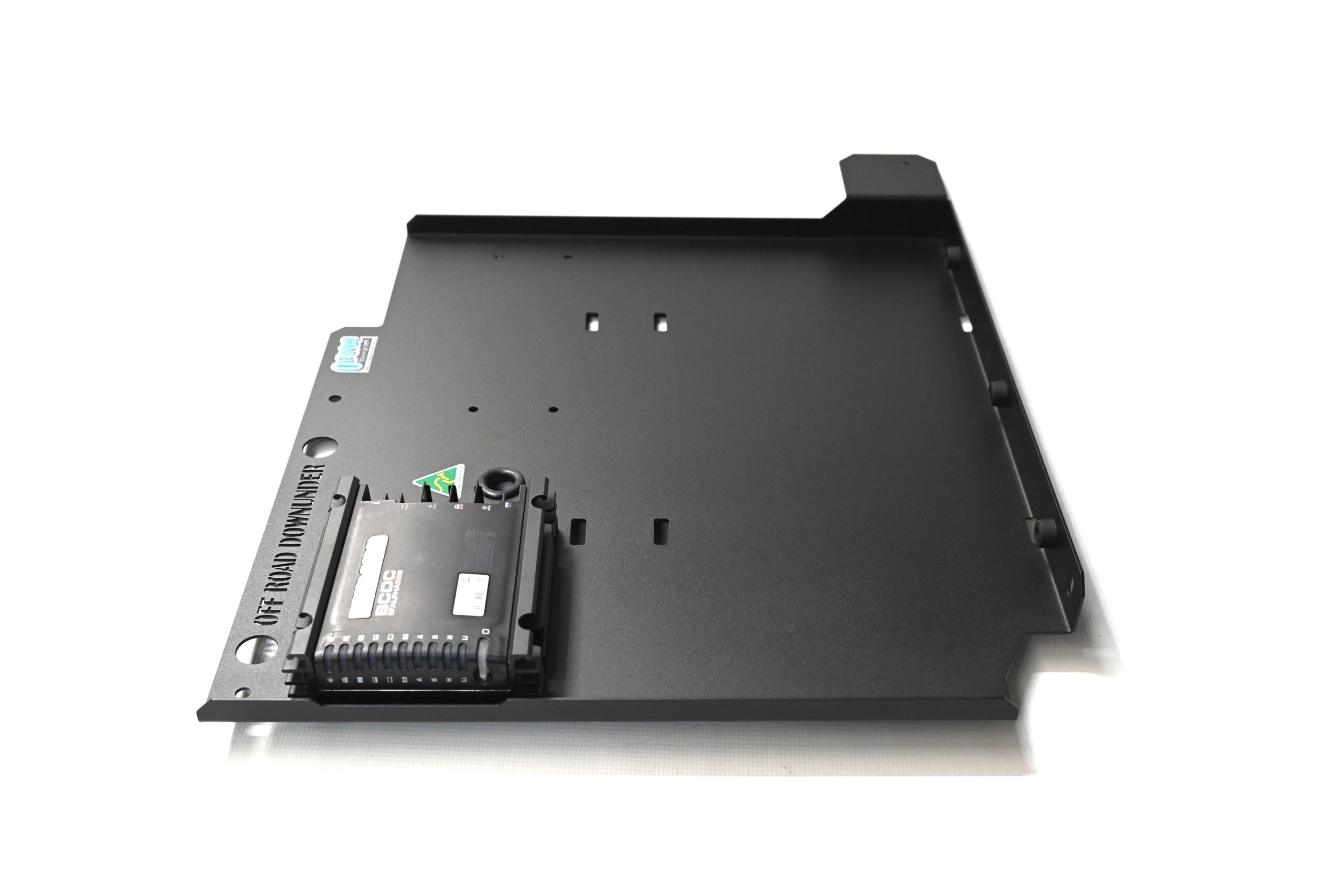

The ORD Battery tray / Accessory Platform for Landrover Defender vehicles is designed to hold all the required components in one neat and compact area under the rear cargo floor, such as a Slimline 100ah up to a 200ah Lithium Battery, Various model Redarc BCDC Charger and even a mounting provision for an ARB Twin Air Compressor.
Battery Tray installs above Mild Hybrid setup and also suits without Mild Hybrid variants which offers you extra storage space under battery tray area.
Registered Design number 202117516 – Registered Australian Made Product and Designed by Off Road Downunder Pty Ltd with Australian Made Accreditation.
Buy with confidence from a widely regarded manufacturer of battery trays since 2007… At ORD we designed and manufactured the Defender battery tray back in 2021 and during this time we have sold hundreds all over the world.
Key features:
- Australian Made Product
- Designed to fit above the 48V Mild-Hybrid System in a 5-seater version as shown in photos below.
- Battery tray primarily suits 100ah Slimline Lithium Battery 553mm L x 109mm W x 239mm H – We recommend and sell Invicta Lithium SNLFT12V100BT 7-year warranty (Suitable Brands: INVICTA , ENERDRIVE/DOMETIC) Now we have updated to cater for other size batteries as listed below.
- *NOTE: Battery tray is also designed with extra tie down provisions to suit a taller slimline battery that is 290mm H , but it will impact the space where the ARB Air Compressor mounts so you cannot fit the ARB Twin air compressor (Brushed model).

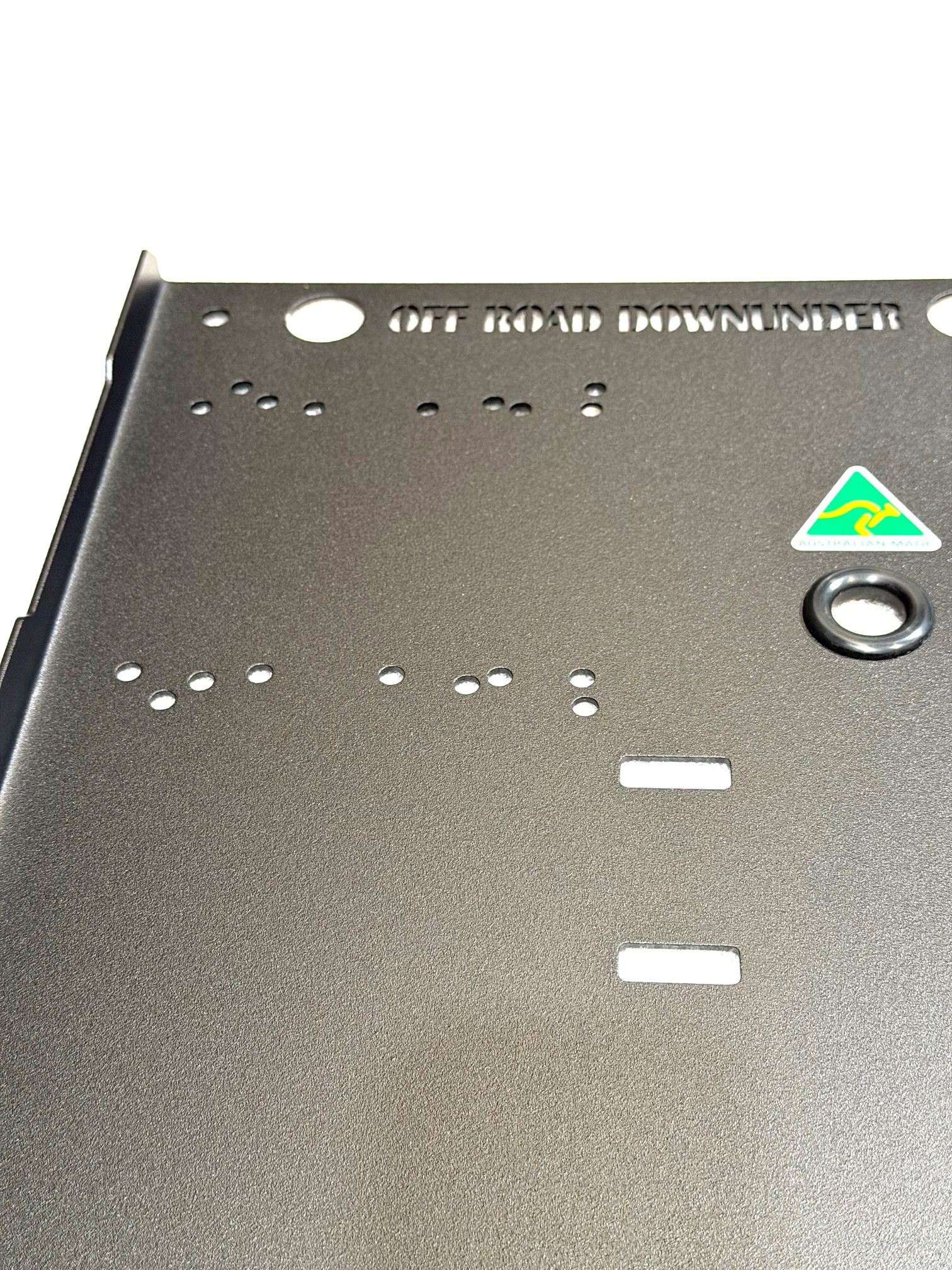

- Mounting provisions for Redarc CLASSIC BCDC1225D, BCDC1240D or BCDC1250D chargers, Redarc CORE 25A & 40A, and the latest V2 tray is updated with mounting holes to suit Redarc Alpha BCDC 25A and 50A with JUMP START FEATURE , installation kit includes wiring protection grommet to suit.
- Zinc under coated and finished in durable black powder-coat.
- Integrated battery location bump stops x 3
- Load rated battery hold down cam-buckle straps x 2
- No drilling into vehicle body – uses all factory mounting points.
- Carefully designed to leave majority of the existing factory foam insert with jack and tools for a factory looking installation. (We have made sure we left the Factory foam insert above suspension compressor and jack area as it supresses the NVH tyre road noise and suspension compressor noise in the cabin area like Landrover intended from factory).
- Comprehensive Step by Step photo installation instructions and mounting hardware provided in kit.
Standard V2 model Battery Tray (DEF300-BTAP) Battery dimension suitability:
- Invicta 100ah Slimline Lithium Battery 553mm L x 109mm W x 239mm H SNLFT12V100BT 7-year warranty – Available on our website!
- Enerdrive / Dometic 100ah Slimline Lithium Battery 553mm L x 109mm W x 239mm H
- MEGALIFE BATTERY AUSTRALIA 12v 200Ah Slimline Lithium Battery MLDCS-12200 (550mm Long x 110mm Wide x 288mm High)
- VOLTX 12v 200Ah Slimline Lithium Battery (552mm Long x 110mm Wide x 288mm High)
- ALLION slimline lithium battery 105ah AL12105FTBT (553mm Long x 110mm Wide x 239mm High)
- NOTE: The taller batteries listed above 239mm will prevent fitment of the ARB Twin motor Compressor.
Standard V2 model Battery Tray (DEF300-BTAP) DC-DC Charger suitability:
- Redarc CLASSIC BCDC1225D, BCDC1240D or BCDC1250D
- Redarc CORE 25A & 40A

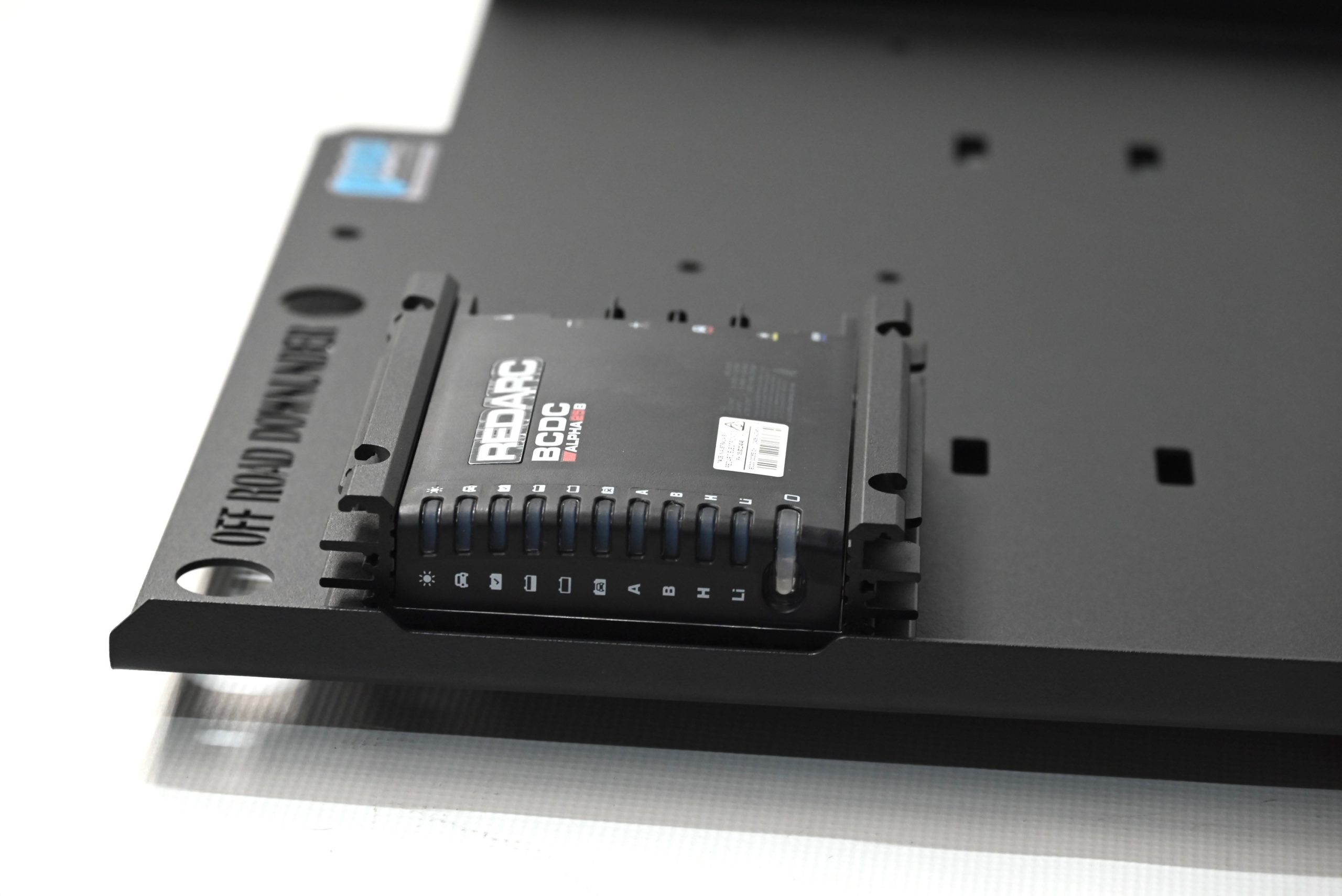

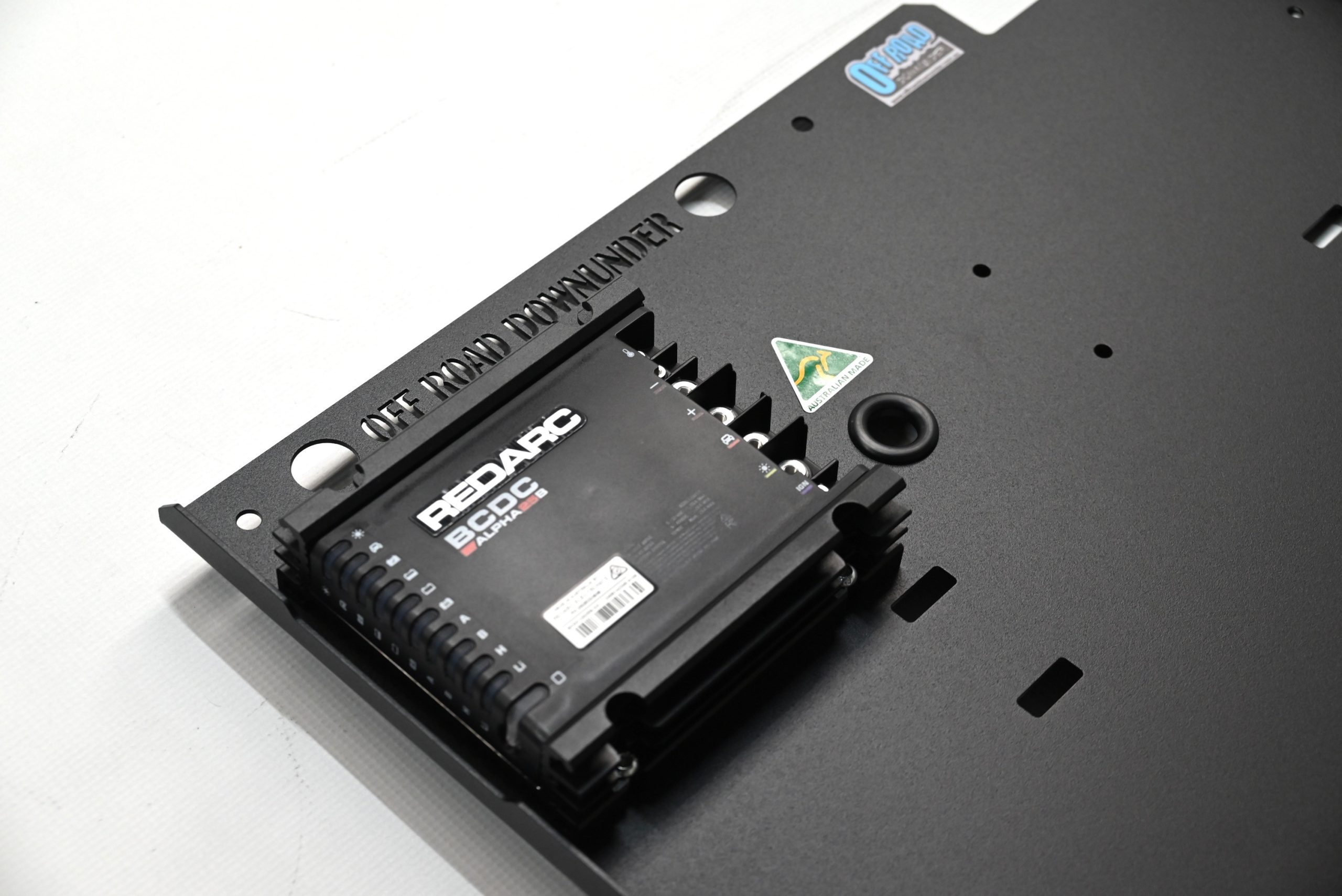

- Redarc Alpha BCDC 25A and 50A with JUMP START FEATURE
NEW! Optional V4 model Battery Tray Design (DEF300-BTAP-V4) with mounting provisions/adjustable battery stop to suit shorter length batteries as per below:
- Itech World 100Ah Slimline Lithium Battery: (ITECH100SX) 110mmW x 394mmL x 286mmH (V4 Tray suits Itech 25A DCDC Charger iTECHDCDC25)
- Custom Lithium 100Ah Slimline lithium battery: 112mmW x 390mmL x 200mmH
- Custom Lithium 200Ah Slimline lithium battery: 120mmW x 450mmL x 250mmH
- Adventure Kings 100ah Slimline Lithium Battery: (AKEP-BATLITHSL100_01) 108mmW x 395mmL x 285mmH (+-5mm)
- Giant 170Ah Slimline Lithium Battery: 110mmW x 400mmL x 290mmH
- ALLSPARK Offroad Living 100Ah slimline lithium battery: 120mmW x 400mmL x 200mmH
- ALLSPARK Offroad Living 150Ah slimline lithium battery: 120mmW x 400mmL x 250mmH
- ALLSPARK Offroad Living 200Ah slimline lithium battery: 120mmW x 400mmL x 300mmH
- Power Crank- Power 110Ah Slimline Lithium Battery IP65: 110mmW x 395mmL x 286mmH
- VoltX 100Ah Slimline Lithium Battery: 110mmW x 395mmL x 297mmH
- Amptron 100Ah Slimline lithium battery: 118mmW x 395mmL x 220mmH
- Amptron 200Ah Slimline lithium battery: 120mmW x 430mmL x 270mmH
- DUNE 4WD 100Ah Slimline lithium battery: 110mmW x 395mmL x 286mmH
- Provolt 100Ah CORE Slimline lithium battery: 110mmW x 395mmL x 286mmH
- Provolt 100Ah Slimline lithium battery: 110mmW x 395mmL x 286mmH
- Ecowatt 105Ah Slimline lithium battery (ESS105): 110mmW x 400mmL x 286mmH
- Provolt 170Ah COMPACT Slimline lithium battery: 110mmW x 395mmL x 286mmH
- NOTE: The taller batteries listed above 239mm will prevent fitment of the ARB Twin motor Compressor.
V4 Battery Tray DC-DC Charger options:
-
- Redarc CLASSIC BCDC1225D, BCDC1240D or BCDC1250D
- Redarc CORE 25A & 40A
- Redarc Alpha BCDC 25A and 50A with JUMP START FEATURE
- Itech 25A DCDC Charger iTECHDCDC25
