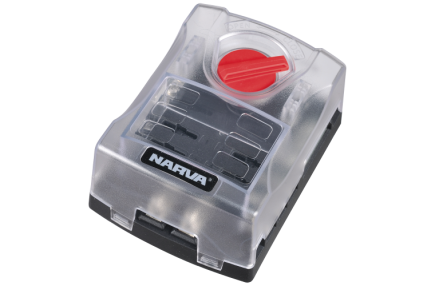

Narva 6-Way Standard ATS Blade Fuse Block with Transparent Cover
2 x Positive Power in Terminal & 1 x main Earth Terminal point.
Ideal solution for wiring auxiliary power to 6 separate circuits.
Narva’s 6 way fuse box is ideal for caravans, motor homes, boats and other applications running numerous circuits and accessories. Designed to eliminate extensive and messy wiring in applications with limited earth connections, the new fuse box features inbuilt common earth returns allowing accessories to be wired back to the fuse box with a single negative feed point for connection to the vehicle’s battery. This ensures a neat and professional appearance and provides a more serviceable electrical system.
Dual power inputs allow the installer to run accessories from two separate circuits to best suit the application, for example ignition or auxiliary circuits. The dual inputs can also be bridged to run accessories from a single circuit or power source.The fuse box is suitable for use with standard ATS blade fuses as well as ATS plug-in circuit breakers for added convenience and versatility. The box comes complete with a professional lockable transparent cover to protect fuses from accidental shorting. Each box is supplied with a sheet of stickers (86) that allows identification and labeling of commonly fused accessories.
Designed to eliminate extensive and messy wiring this fuse box is ideal for applications running numerous circuits and accessories.
- Neat, professional appearance
- Dual power inputs
- Inbuilt common earth returns
- For use with standard ATS blade fuses & ATS plug in circuit breakers
- Lockable transparent cover
- 84 adhesive labels included
Max Amps per circuit = 30A
Max Amps per whole fuse block = 120A
Max Voltage = 32V DC
Dimensions = 125mm Long x 94.5mm Wide x 58mm High
